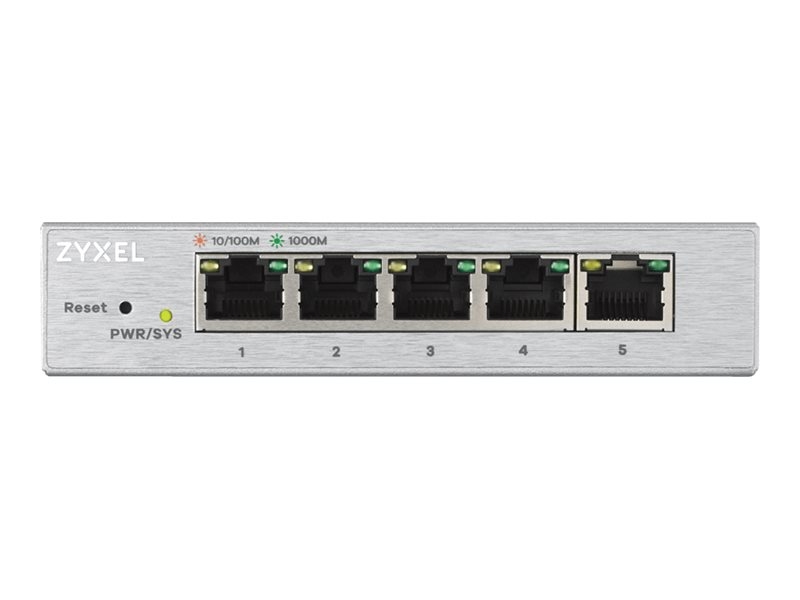

Printers & POSZyxel GS1200-5 - switch - 5 ports - Managed
SKU GS1200-5-EU0101F
| Product Description: | Zyxel GS1200-5 - switch - 5 ports - Managed |
| Device Type: | Switch - 5 ports - Managed |
| Subtype: | Gigabit Ethernet |
| Ports: | 5 x 10/100/1000 |
| Performance: | Switching capacity: 10 Gbps |
| Capacity: | Multicast groups: 128 |
| MAC Address Table Size: | 2K entries |
- Specifications
- Description
| General | |
| Device Type: | Switch - 5 ports - Managed |
| Enclosure Type: | Desktop |
| Subtype: | Gigabit Ethernet |
| Ports: | 5 x 10/100/1000 |
| Performance: | Switching capacity: 10 Gbps |
| Capacity: | Multicast groups: 128 |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9KB |
| Routing Protocol: | IGMP, IGMPv2, IGMPv3 |
| Remote Management Protocol: | HTTP |
| Features: | QoS, IGMP snooping, VLAN support, firmware upgradable, Energy Efficient Ethernet, flow control, CoS, auto-uplink (auto MDI/MDI-X), tagged VLAN, Broadcast Storm Control, WRR queuing, 128KB packet buffer, loop prevention, port mirroring, WRR, port-based QoS, fanless, metal housing, wall mountable, Link Aggregation |
| Compliant Standards: | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1Q |
| Status Indicators: | Power, port status, port transmission speed |
| Expansion / Connectivity | |
| Interfaces: | 5 x 1000Base-T RJ-45 |
| Power | |
| Power Device: | External power adapter |
| Power Consumption Operational: | 2.67 Watt |
| Miscellaneous | |
| Compliant Standards: | BMSI, LVD, EMC, FCC, EMC Class B, RoHS, C-Tick, EMC Class A, EN 60950-1 |
| Localisation: | Europe |
| Dimensions & Weight | |
| Width: | 12.1 cm |
| Depth: | 7.5 cm |
| Height: | 2.6 cm |
| Weight: | 233 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 12.7 cm |
| Shipping Depth: | 8.2 cm |
| Shipping Height: | 9.5 cm |
| Shipping Weight: | 388 g |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 10 - 90% (non-condensing) |
This switch comes with a user-friendly web-based set-up wizard that walks you through setup, configuration and management - including configuration backups and firmware upgrades - quickly and easily. With a few simple clicks, your network will be humming along, so you can get back to business.
Based on the IGMP (Internet Group Management Protocol) query and report messages, the switch forwards traffic only to the ports that request the multicast traffic rather than to all ports. It helps to optimize multicast performance and is especially useful for bandwidth-intensive IP multicast applications such as online media streaming and gaming.
Based on the IGMP (Internet Group Management Protocol) query and report messages, the switch forwards traffic only to the ports that request the multicast traffic rather than to all ports. It helps to optimize multicast performance and is especially useful for bandwidth-intensive IP multicast applications such as online media streaming and gaming.
- Easy web management and set-up wizard
- IGMP Snooping for optimized traffic delivery
- VLAN segregation for enhanced network security
- Enhanced port-based QoS for better traffic control
- Advanced energy-savings at work
- Fanless, noiseless design
- More comprehensive smart features included
