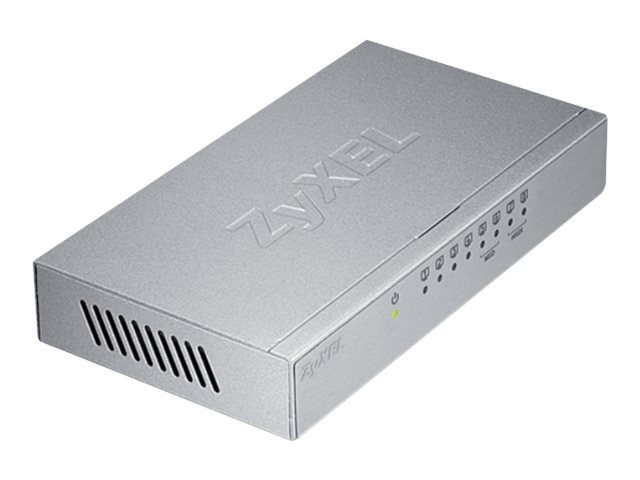

Printers & POSZyxel GS-108B - v3 - switch - 8 ports - unmanaged
SKU GS-108BV3-EU0101F
| Product Description: | Zyxel GS-108B - v3 - switch - 8 ports - unmanaged |
| Device Type: | Switch - 8 ports - unmanaged |
| Subtype: | Gigabit Ethernet |
| Ports: | 8 x 10/100/1000 |
| Performance: | Switching fabric bandwidth: 16 Gbps |
| MAC Address Table Size: | 8K entries |
| Jumbo Frame Support: | 9KB |
- Specifications
- Description
| General | |
| Device Type: | Switch - 8 ports - unmanaged |
| Enclosure Type: | Desktop |
| Subtype: | Gigabit Ethernet |
| Ports: | 8 x 10/100/1000 |
| Performance: | Switching fabric bandwidth: 16 Gbps |
| MAC Address Table Size: | 8K entries |
| Jumbo Frame Support: | 9KB |
| Features: | Full duplex capability, 128KB packet buffer, auto-uplink (auto MDI/MDI-X), auto-negotiation, Energy Efficient Ethernet, loop prevention, QoS, store and forward, flow control |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| Status Indicators: | Link/activity, power |
| Expansion / Connectivity | |
| Interfaces: | 2 x 1000Base-T RJ-45 high priority ¦ 2 x 1000Base-T RJ-45 medium priority ¦ 4 x 1000Base-T RJ-45 |
| Power | |
| Power Device: | External power adapter |
| Voltage Required: | AC 120/230 V |
| Power Consumption Operational: | 3 Watt |
| Miscellaneous | |
| Compliant Standards: | FCC Class B certified, BSMI |
| Dimensions & Weight | |
| Width: | 15.5 cm |
| Depth: | 8.5 cm |
| Height: | 2.6 cm |
| Weight: | 325 g |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 10 - 95% (non-condensing) |
ZyXEL's GS-108B 10/100/1000 Mbps desktop switch is designed for reliable high-performance networks. Thanks to the non-blocking switching fabric in full-duplex mode, the maximum speed can reach up to 2000 Mbps per port; the store-and-forward service brings low-latency and error-free packet delivery. With these features, the transmission efficiency can be boosted dramatically.
With the N-way auto-negotiation function, the GS-108B automatically connects to its network counterparts with the highest possible network speed and activates duplex mode automatically. All it takes to enliven your network is just plugging in the cable, and no manual configuration is required.
The stylish compact metal housing fits any working environment. GS-108B comes with different port configurations for affordable and reliable SOHO network expansion needs.
With the N-way auto-negotiation function, the GS-108B automatically connects to its network counterparts with the highest possible network speed and activates duplex mode automatically. All it takes to enliven your network is just plugging in the cable, and no manual configuration is required.
The stylish compact metal housing fits any working environment. GS-108B comes with different port configurations for affordable and reliable SOHO network expansion needs.
- 8 auto-sensing 10/100/1000 Mbps full-duplex, auto MDI/MDI-X ports
- Full wire-speed store-and-forward technology support
- True plug-and-play installation
- Up to 2000 Mbps bandwidth per port
- Hassle-free installation
- Compact stylish design
The technical details come from 3rd party. edgemo is not responsible for any errors.
