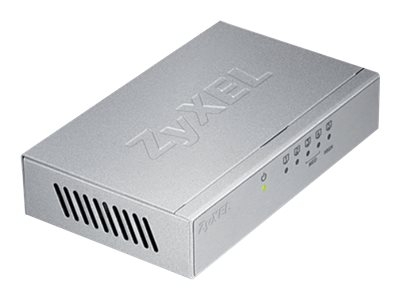

Zyxel GS-105B - v3 - switch - 5 ports - unmanaged

SKU GS-105BV3-EU0101F
Product Description:Zyxel GS-105B - v3 - switch - 5 ports - unmanaged
Device Type:Switch - 5 ports - unmanaged
Subtype:Gigabit Ethernet
Ports:5 x 10/100/1000
Performance:Switching fabric bandwidth: 10 Gbps
MAC Address Table Size:2K entries
Jumbo Frame Support:9KB
In Stock(91)
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Switch - 5 ports - unmanaged
Enclosure Type:Desktop
Subtype:Gigabit Ethernet
Ports:5 x 10/100/1000
Performance:Switching fabric bandwidth: 10 Gbps
MAC Address Table Size:2K entries
Jumbo Frame Support:9KB
Features:Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, Quality of Service (QoS), 128KB packet buffer, Energy Efficient Ethernet, loop prevention
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Status Indicators:Power, link/activity
Expansion / Connectivity
Interfaces:1 x 1000Base-T RJ-45 high priority ¦ 2 x 1000Base-T RJ-45 medium priority ¦ 2 x 1000Base-T RJ-45
Power
Power Device:External power adapter
Voltage Required:AC 120/230 V
Power Consumption Operational:2.5 Watt
Miscellaneous
Compliant Standards:FCC Class B certified, BSMI
Dimensions & Weight
Width:12.1 cm
Depth:7.5 cm
Height:2.6 cm
Weight:229 g
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:50 °C
Humidity Range Operating:10 - 90% (non-condensing)
Min Storage Temperature:-40 °C
Max Storage Temperature:70 °C
Humidity Range Storage:10 - 95% (non-condensing)
vis mere
ZyXEL's GS-105B 10/100/1000 Mbps desktop switch is designed for reliable high-performance networks. Thanks to the non-blocking switching fabric in full-duplex mode, the maximum speed can reach up to 2000 Mbps per port. With these features, the transmission efficiency can be boosted dramatically.
With the N-way auto-negotiation function, the GS-105B automatically connects to its network counterparts with the highest possible network speed and activates duplex mode automatically. All it takes to enliven your network is just plugging in the cable, and no manual configuration is required.
The stylish compact metal housing fits any working environment. GS-105B comes with different port configurations for affordable and reliable SOHO network expansion needs.
  • 5/8 auto-sensing 10/100/1000 Mbps full-duplex, auto MDI/MDI-X ports
  • Full wire-speed store-and-forward technology support
  • True plug-and-play installation
  • Up to 2000 Mbps bandwidth per port
  • Compact stylish design




The technical details come from 3rd party. edgemo is not responsible for any errors.
