Printers & POSZyxel ES-108A - v3 - switch - 8 ports - unmanaged
SKU ES-108AV3-EU0101F

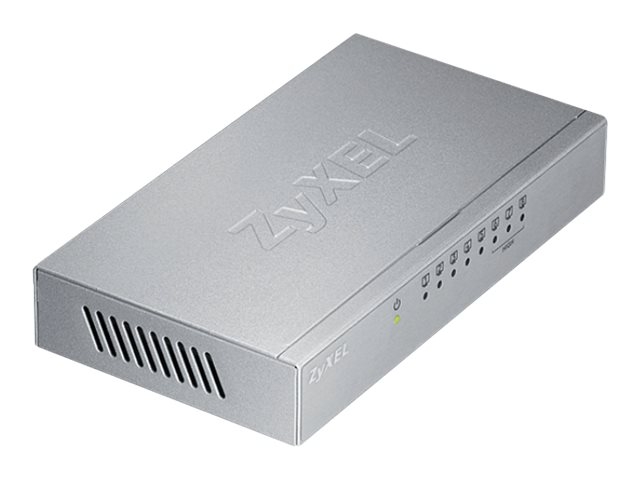

| Product Description: | Zyxel ES-108A - v3 - switch - 8 ports - unmanaged |
| Device Type: | Switch - 8 ports - unmanaged |
| Subtype: | Fast Ethernet |
| Ports: | 8 x 10/100 |
| Performance: | Switching fabric bandwidth: 1.6 Gbps |
| MAC Address Table Size: | 1K entries |
| Features: | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, Quality of Service (QoS), Energy Efficient Ethernet, 56KB packet buffer |
- Specifications
- Description
| General | |
| Device Type: | Switch - 8 ports - unmanaged |
| Enclosure Type: | Desktop |
| Subtype: | Fast Ethernet |
| Ports: | 8 x 10/100 |
| Performance: | Switching fabric bandwidth: 1.6 Gbps |
| MAC Address Table Size: | 1K entries |
| Features: | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, Quality of Service (QoS), Energy Efficient Ethernet, 56KB packet buffer |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az |
| Status Indicators: | Power, link/activity |
| Expansion / Connectivity | |
| Interfaces: | 3 x 100Base-TX RJ-45 high priority ¦ 5 x 100Base-TX RJ-45 |
| Power | |
| Power Device: | External power adapter |
| Voltage Required: | AC 120/230 V |
| Power Consumption Operational: | 1.52 Watt |
| Miscellaneous | |
| Compliant Standards: | BSMI |
| Dimensions & Weight | |
| Width: | 15.5 cm |
| Depth: | 8.5 cm |
| Height: | 2.6 cm |
| Weight: | 304 g |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 10 - 95% (non-condensing) |
The stylish and compact metal housing of the ES-108A fits any working environments. The affordable and reliable series comes with 8 ports to meet home network expansion needs.
The ZyXEL ES-108A is designed with 3 "VIP" ports. With port-based QoS feature, the ES-108A provides considerably enhanced download quality. Users can experience better performance of Internet surfing, online gaming and multimedia streaming preferred through prioritized bandwidth setting.
The ES-108A is designed to boost your home network with better performance and efficiency. With N-way auto-negotiation function, the ES-108A connects to network counterparts with highest possible speed and activates full-duplex mode automatically, while the store-and-forward service brings low latency and error-free packet delivery. You can also easily connect devices such as PCs, network storages and print servers to the home network without any manual configuration.
The ZyXEL ES-108A is designed with 3 "VIP" ports. With port-based QoS feature, the ES-108A provides considerably enhanced download quality. Users can experience better performance of Internet surfing, online gaming and multimedia streaming preferred through prioritized bandwidth setting.
The ES-108A is designed to boost your home network with better performance and efficiency. With N-way auto-negotiation function, the ES-108A connects to network counterparts with highest possible speed and activates full-duplex mode automatically, while the store-and-forward service brings low latency and error-free packet delivery. You can also easily connect devices such as PCs, network storages and print servers to the home network without any manual configuration.
- Compact and stylish design
- Plug and Play design for easily connecting up to 8 network devices
- Get optimal bandwidth for media traffics through VIP ports
- Automatically adjust the power consumption by detecting the link status and cable length
