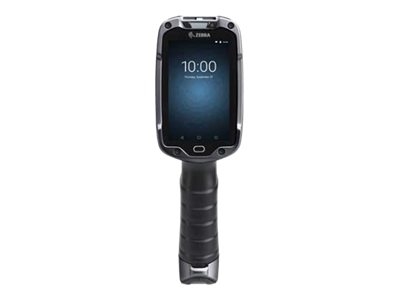

Zebra TC8300 - data collection terminal - Android 8.1 (Oreo) - 32 GB - 4"
SKU TC83BH-3205A710RW
Product Description: | Zebra TC8300 - data collection terminal - Android 8.1 (Oreo) - 32 GB - 4" |
Product Type: | Data collection terminal - rugged |
Operating System: | Android 8.1 (Oreo) |
Display: | 4" - 800 x 480 - Multi-Touch |
Processor: | Qualcomm Snapdragon 660 660 (8-core) |
Processor Clock Speed: | 2.2 GHz |
Storage: | 32 GB |
- Specifications
- Description
General | |
Product Type: | Data collection terminal - rugged |
Operating System: | Android 8.1 (Oreo) |
Display | |
Type: | 4" (transflective) |
Resolution: | 800 x 480 |
Colour Depth: | 16.7 million colours |
Touchscreen: | Multi-Touch |
Image Brightness: | 400 cd/m² |
Features: | Corning Gorilla glass, glove touch mode |
Processor | |
Processor: | Qualcomm Snapdragon 660 660 |
Processor Clock Speed: | 2.2 GHz |
Number of Cores: | 8-core |
Memory | |
Storage: | 32 GB |
RAM: | 4 GB |
Supported Flash Memory Cards: | SD Memory Card, SDXC Memory Card |
Communications | |
Wireless Connectivity: | 802.11a/b/g/n/ac, NFC, Bluetooth 5.0 |
Security Protocols & Features: | LEAP, WEP, WPA, TKIP, AES, WPS, EAP-TTLS, EAP-TLS, EAP-FAST, PAP, PEAPv0, PEAPv1, EAP-GTC, EAP-MSCHAPv2, CCKM, EAP-MSCHAP |
Rear Camera | |
Sensor Resolution: | 13 Megapixel |
Focus Adjustment: | Automatic |
Multimedia | |
Audio: | Stereo speakers |
Input Device | |
Type: | Touch-screen |
Barcodes | |
Barcode Reader: | Yes |
Scan Element Type: | 2D imager |
Max Working Distance: | 7.62 cm |
RFID | |
RFID Specification: | ISO 15693, Felica, ISO 14443A, ISO 14443B |
Software | |
Preloaded Software: | Google Mobile Services, Mobility DNA solutions |
Expansion and Connectivity | |
Interfaces: | 1 x USB 2.0 |
USB Host: | Yes |
Battery | |
Technology: | PowerPrecision+ - Lithium Ion |
Capacity: | 7000 mAh |
Miscellaneous | |
Sensors: | Ambient light sensor, proximity sensor, 3-axis gyro sensor, magnetometer, 3-axis accelerometer |
Features: | Hot-swappable battery, USB On-The-Go, SE4850 Extended Range Array Imager |
Vibrating Alert: | Yes |
Compliant Standards: | MIL-STD 810G, IP65 |
Localisation: | Rest of World |
Dimensions & Weight | |
Width: | 7.6 cm |
Depth: | 6.4 cm |
Height: | 23.3 cm |
Weight: | 490 g |
Dimensions & Weight (Shipping) | |
Shipping Weight: | 500 g |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 1 year |
Environmental Parameters | |
Min Operating Temperature: | -20 °C |
Max Operating Temperature: | 50 °C |
Humidity Range Operating: | 5 - 95% (non-condensing) |
Min Storage Temperature: | -40 °C |
Max Storage Temperature: | 70 °C |
Get all the power you need to ensure superior performance on all your voice and data apps with the ultra-powerful 8-core processor.
The 2x2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology allows access points to communicate with multiple devices simultaneously via pinpoint beamforming, boosting Wi-Fi network capacity, speed and range. And processing is shifted from the mobile device to the access point, extending battery cycle time.
The TC8300 can run for three consecutive shifts without a battery change. And extensive battery metrics make it easy to spot and retire aging batteries that can no longer hold a full charge.
The innovative scan angle eliminates the constant tilting that traditional designs require to view the screen and enter data, increasing productivity by 14% through a 55% reduction in wrist motion and a 15% reduction in muscle effort.
The TC8300 is built for day-in day-out operation in even the most challenging warehouse environments. The TC8300 continues to run, even after 2000 consecutive tumbles and multiple 8 ft./2.4 m drops to concrete. This dustproof device can also handle jetting water, refrigerated storage areas and constant temperature swings between extreme heat and subzero cold - ideal in outside yards. And Corning Gorilla Glass brings maximum scratch- and impact resistance to two of the most vulnerable device components - the touch panel and scanner exit window.
Give your workers great touchscreen experience. The 4-inch display offers plenty of space for graphics-intensive intuitive applications. Users can interact with applications with a finger - even with a glove - or a stylus.
The 2x2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology allows access points to communicate with multiple devices simultaneously via pinpoint beamforming, boosting Wi-Fi network capacity, speed and range. And processing is shifted from the mobile device to the access point, extending battery cycle time.
The TC8300 can run for three consecutive shifts without a battery change. And extensive battery metrics make it easy to spot and retire aging batteries that can no longer hold a full charge.
The innovative scan angle eliminates the constant tilting that traditional designs require to view the screen and enter data, increasing productivity by 14% through a 55% reduction in wrist motion and a 15% reduction in muscle effort.
The TC8300 is built for day-in day-out operation in even the most challenging warehouse environments. The TC8300 continues to run, even after 2000 consecutive tumbles and multiple 8 ft./2.4 m drops to concrete. This dustproof device can also handle jetting water, refrigerated storage areas and constant temperature swings between extreme heat and subzero cold - ideal in outside yards. And Corning Gorilla Glass brings maximum scratch- and impact resistance to two of the most vulnerable device components - the touch panel and scanner exit window.
Give your workers great touchscreen experience. The 4-inch display offers plenty of space for graphics-intensive intuitive applications. Users can interact with applications with a finger - even with a glove - or a stylus.
- Maximum power for maximum application performance
- Long Wi-Fi range and speed
- Bluetooth 5.0 - twice the speed, four times the range, less power
- Triple-shift battery power and unsurpassed battery management
- Superior ergonomics for superior productivity and comfort
- Ultimate rugged design for the ultimate dependable operation
- Hands-free proximity scanning with a handheld device
- Advanced touchscreen technology for flexible data input
