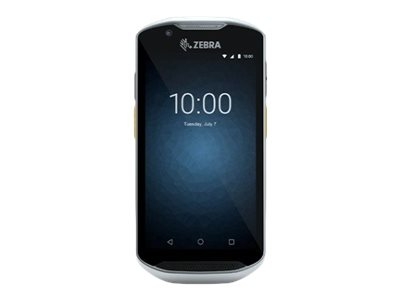

Printers & POSZebra TC52AX - data collection terminal - Android 11 - 64 GB - 5"
SKU TC520L-1YLMU7P-A6
| Product Description: | Zebra TC52AX - data collection terminal - Android 11 - 64 GB - 5" |
| Product Type: | Data collection terminal - rugged |
| Operating System: | Android 11 |
| Display: | 5" LED backlight - 1920 x 1080 - Multi-Touch |
| Processor: | Qualcomm Snapdragon 660 (8-core) |
| Processor Clock Speed: | 2.45 GHz |
| Storage: | 64 GB UFS card |
- Specifications
- Description
| General | |
| Product Type: | Data collection terminal - rugged |
| Operating System: | Android 11 |
| Display | |
| Type: | 5" - LED backlight |
| Resolution: | 1920 x 1080 |
| Touchscreen: | Multi-Touch |
| Features: | Corning Gorilla glass, outdoor viewable, anti-fingerprint, anti-smudge, optical bonding, capacitive touch screen, dual mode touchscreen |
| Processor | |
| Processor: | Qualcomm Snapdragon 660 |
| Processor Clock Speed: | 2.45 GHz |
| Number of Cores: | 8-core |
| Memory | |
| Storage: | 64 GB UFS card |
| RAM: | 4 GB |
| Supported Flash Memory Cards: | microSD, microSDHC, microSDXC |
| Max Supported Capacity: | 256 GB |
| Communications | |
| Wireless Connectivity: | NFC, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 |
| Security Protocols & Features: | LEAP, WEP, WPA, WPA2, TKIP, AES, EAP-TTLS, EAP-TLS, WPA2-Enterprise, PAP, PEAPv0, PEAPv1, EAP-GTC, EAP-MSCHAPv2, EAP-MSCHAP, IPv6 support, EAP-PWD, WPA3, WPA3-Enterprise |
| Rear Camera | |
| Sensor Resolution: | 13 Megapixel |
| Focus Adjustment: | Automatic |
| Light Source: | LED flash |
| Features: | Phase Detect Auto-Focus (PDAF) |
| Front Camera | |
| Sensor Resolution: | 5 Megapixel |
| Multimedia | |
| Audio: | Three microphones, speaker |
| Input Device | |
| Type: | 4 programmable buttons |
| Barcodes | |
| Barcode Reader: | Yes |
| Scan Element Type: | 2D imager |
| RFID | |
| RFID Specification: | ISO 15693, Felica, ISO 14443A, ISO 14443B |
| Software | |
| Preloaded Software: | Google Mobile Services |
| Expansion and Connectivity | |
| Interfaces: | USB 2.0 ¦ Headphones mini jack (3.5mm) |
| USB Host: | Yes |
| Battery | |
| Technology: | PowerPrecision+ - Lithium Ion |
| Capacity: | 15.48 Wh |
| Run Time: | Up to 14 hours |
| Miscellaneous | |
| Sensors: | Proximity sensor, magnetometer, motion sensor, pressure sensor, light sensor |
| Features: | Audible alarm, ambient light sensor, noise reduction, Interactive Sensor Technology (IST), digital compass, drop-resistant, microphone with noise-cancellation, IP65 protection, push-to-talk speaker, IP68 protection, fast charging, warm swap, 2x2 MiMo function, ESD protection, SE5500 Advanced Range Scan Engine with IntelliFocus technology |
| Vibrating Alert: | Yes |
| Compliant Standards: | MIL-STD 810G, IP68, IP65, REACH 2006/1907, RoHS 2011/65/EU Amendment 2015/863 |
| Localisation: | Rest of World |
| Dimensions & Weight | |
| Width: | 7.55 cm |
| Depth: | 1.86 cm |
| Height: | 16.37 cm |
| Weight: | 266 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature: | -20 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
The rugged Wi-Fi only TC52ax Mobile Computer, armed with the latest mobile technology advancements including Wi-Fi 6, an extended range scanner option with intelligent focusing, Device Tracker, the Workstation Connect solution and Zebra's Mobility DNA tools, makes the TC52ax the ultimate rugged mobile computer for workers inside the four walls.
The technical details come from 3rd party. edgemo is not responsible for any errors.
