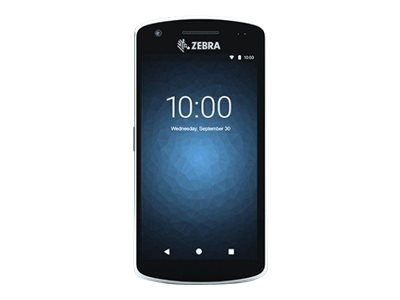

Printers & POSZebra EC55 - data collection terminal - Android 10 - 64 GB - 5" - 4G
SKU EC55BK-21B242-A6
| Product Description: | Zebra EC55 - data collection terminal - Android 10 - 64 GB - 5" - 4G |
| Product Type: | Data collection terminal |
| Operating System: | Android 10 |
| Display: | 5" LED backlight - 720 x 1280 - Multi-Touch |
| Processor: | Qualcomm Snapdragon 660 (8-core) |
| Processor Clock Speed: | 2.2 GHz |
| Storage: | 64 GB |
- Specifications
- Description
| General | |
| Product Type: | Data collection terminal |
| Operating System: | Android 10 |
| Display | |
| Type: | 5" - LED backlight |
| Resolution: | 720 x 1280 |
| Touchscreen: | Multi-Touch |
| Image Brightness: | 450 cd/m² |
| Features: | Corning Gorilla glass, capacitive touch screen |
| Processor | |
| Processor: | Qualcomm Snapdragon 660 |
| Processor Clock Speed: | 2.2 GHz |
| Number of Cores: | 8-core |
| Memory | |
| Storage: | 64 GB |
| RAM: | 4 GB |
| Supported Flash Memory Cards: | microSD, microSDHC, microSDXC |
| Max Supported Capacity: | 128 GB |
| Communications | |
| SIM Card Type: | Nano SIM, Electronic SIM card (e-SIM) |
| Cellular Technology: | 4G |
| Cellular Protocols: | GSM, UMTS, FDD LTE, TDD LTE |
| Band: | GSM 850/900/1800/1900 / LTE B1/B17/B19/B2/B20/B28/B3/B38/B39/B4/B40/B41/B5/B7/B8 |
| Wireless Connectivity: | 802.11a/b/g/n/ac, NFC, Bluetooth 5.0 LE |
| Security Protocols & Features: | LEAP, WEP, WPA, WPA2, TKIP, AES, EAP-TTLS, EAP-TLS, WPA2-Enterprise, PAP, MS-CHAP, MS-CHAPv2, PEAPv0, PEAPv1, EAP-GTC, EAP-PWD, WPA-Enterprise |
| Rear Camera | |
| Sensor Resolution: | 13 Megapixel |
| Focus Adjustment: | Automatic |
| Lens Aperture: | F/2.0 |
| Light Source: | LED flash |
| Front Camera | |
| Sensor Resolution: | 5 Megapixel |
| Lens Aperture: | F/2.0 |
| Multimedia | |
| Audio: | 3-microphone array, speaker |
| Input Device | |
| Type: | Touch-screen |
| Barcodes | |
| Barcode Reader: | Yes |
| Scan Element Type: | 2D imager |
| RFID | |
| RFID Specification: | ISO 15693, Mifare, Felica, ISO 14443A, ISO 14443B |
| Software | |
| Preloaded Software: | Google Mobile Services |
| Expansion and Connectivity | |
| Expansion Slots: | 1 x Nano-SIM card ¦ 1 x microSD |
| Interfaces: | 1 x USB-C |
| USB Host: | Yes |
| Battery | |
| Technology: | Extended capacity battery |
| Capacity: | 4180 mAh |
| Miscellaneous | |
| Sensors: | Ambient light sensor, proximity sensor, 3-axis gyro sensor, electromagnetic compass, 3-axis accelerometer |
| Features: | Interactive Sensor Technology (IST), rear connectivity, vibration, push-to-talk speaker, SE4100 imager |
| Vibrating Alert: | Yes |
| Compliant Standards: | MIL-STD 810G, IP67, REACH SvHC, REACH 2006/1907, RoHS 2011/65/EU Amendment 2015/863 |
| Localisation: | Rest of World |
| Dimensions & Weight | |
| Width: | 7.6 cm |
| Depth: | 1.18 cm |
| Height: | 15.45 cm |
| Weight: | 183 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature: | -10 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
The EC55 Wi-Fi/cellular individually assigned enterprise mobile computer with integrated scanner is Zebra's thinnest, lightest mobile computer yet. This device is always at your workers' fingertips, ready to work whether your workers are inside your facility or out in the field.
- 5-inch display with LED backlight and Corning Gorilla glass for durability
- Supports up to 128 GB microSD cards for extensive storage options
- IP67 compliant and built to withstand extreme temperatures, from -10°C to 50°C
- Interactive Sensor Technology (IST) and push-to-talk feature for enhanced user interaction
- 4G mobile broadband access for high-speed Internet connectivity on-the-go
The technical details come from 3rd party. edgemo is not responsible for any errors.
