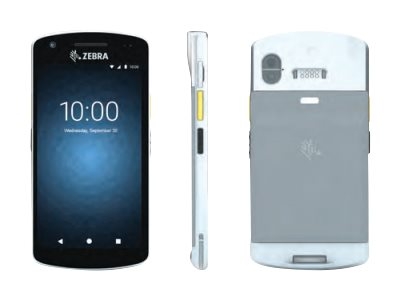

Printers & POSZebra EC55 - data collection terminal - Android 10 - 32 GB - 5" - 4G
SKU EC55BK-11B112-A6
| Product Description: | Zebra EC55 - data collection terminal - Android 10 - 32 GB - 5" - 4G |
| Product Type: | Data collection terminal |
| Operating System: | Android 10 |
| Display: | 5" colour LED backlight - 720 x 1280 - Multi-Touch |
| Processor: | Qualcomm Snapdragon 660 (8-core) - 64-bit |
| Processor Clock Speed: | 2.2 GHz |
| Storage: | 32 GB |
- Specifications
- Description
| General | |
| Product Type: | Data collection terminal |
| Operating System: | Android 10 |
| Display | |
| Type: | 5" colour - LED backlight |
| Resolution: | 720 x 1280 |
| Touchscreen: | Multi-Touch |
| Image Brightness: | 450 cd/m² |
| Features: | Corning Gorilla glass, capacitive touch screen |
| Processor | |
| Processor: | Qualcomm Snapdragon 660 |
| Processor Clock Speed: | 2.2 GHz |
| Number of Cores: | 8-core |
| 64-bit Computing: | Yes |
| Memory | |
| Storage: | 32 GB |
| RAM: | 3 GB |
| Supported Flash Memory Cards: | microSD, microSDHC, microSDXC |
| Max Supported Capacity: | 128 GB |
| Communications | |
| Cellular Technology: | 4G |
| Cellular Protocols: | GSM, UMTS, FDD LTE, TDD LTE |
| Band: | LTE B1/B17/B19/B2/B20/B28/B3/B38/B39/B4/B40/B41/B5/B7/B8 |
| Wireless Connectivity: | 802.11a/b/g/n/ac, NFC, Bluetooth 5.0 LE |
| Security Protocols & Features: | LEAP, WEP, WPA, WPA2, TKIP, AES, EAP-TTLS, EAP-TLS, WPA2-Enterprise, PAP, PEAPv0, PEAPv1, EAP-GTC, EAP-MSCHAPv2, CCKM, EAP-MSCHAP, EAP-PWD, WPA-Enterprise |
| Rear Camera | |
| Sensor Resolution: | 13 Megapixel |
| Focus Adjustment: | Automatic |
| Lens Aperture: | F/2.0 |
| Light Source: | LED flash |
| Front Camera | |
| Sensor Resolution: | 5 Megapixel |
| Lens Aperture: | F/2.0 |
| Navigation System | |
| Receiver: | A-GPS/GPS/GLONASS/Gallileo/Beidou |
| Multimedia | |
| Audio: | 3-microphone array, speaker |
| Input Device | |
| Type: | Touch-screen |
| Barcodes | |
| Barcode Reader: | Yes |
| Scan Element Type: | 2D imager |
| RFID | |
| RFID Specification: | ISO 15693, Mifare, Felica, ISO 14443A, ISO 14443B |
| Software | |
| Preloaded Software: | Google Mobile Services |
| Expansion and Connectivity | |
| Expansion Slots: | 1 x Nano-SIM card ¦ 1 x microSDXC |
| Interfaces: | 1 x 2 pin connector ¦ 1 x USB-C |
| USB Host: | Yes |
| Battery | |
| Capacity: | 3060 mAh |
| Miscellaneous | |
| Sensors: | Ambient light sensor, proximity sensor, 3-axis gyro sensor, magnetometer, 3-axis accelerometer |
| Features: | Audible alarm, Interactive Sensor Technology (IST), LED indicator, drop-resistant, USB On-The-Go, push-to-talk speaker, vibration-resistant, SE4100 imager, ESD protection up to 8 kV (direct), ESD protection up to 15 kV (air) |
| Vibrating Alert: | Yes |
| Compliant Standards: | Bluetooth Class 2, MIL-STD 810G, IP67, REACH 2006/1907, IEEE 802.11r, RoHS 2011/65/EU Amendment 2015/863 |
| Localisation: | Rest of World |
| Dimensions & Weight | |
| Width: | 7.6 cm |
| Depth: | 0.98 cm |
| Height: | 15.45 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - parts and labour - 1 year |
| Environmental Parameters | |
| Min Operating Temperature: | -10 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
The EC55 Wi-Fi/cellular individually assigned enterprise mobile computer with integrated scanner is Zebra's thinnest, lightest mobile computer yet. This device is always at your workers' fingertips, ready to work whether your workers are inside your facility or out in the field.
The technical details come from 3rd party. edgemo is not responsible for any errors.
