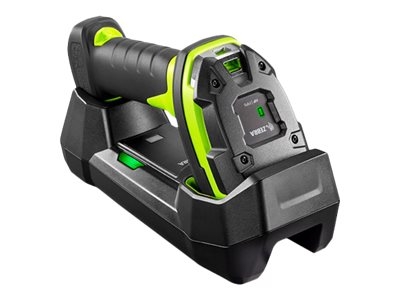

Zebra DS3678-SR - USB Kit - barcode scanner
SKU DS3678-SR3U42A0SFW
Product Description: | Zebra DS3678-SR - USB Kit - barcode scanner |
Type: | Barcode scanner - portable - Bluetooth 4.0 - decoded |
Colour: | Industrial green |
Minimum Bar Width: | 5 mil |
Sensor Resolution: | 1280 x 960 |
Connectivity Technology: | Wireless |
Wireless Connectivity: | Bluetooth 4.0 LE |
- Specifications
- Description
General | |
Type: | Barcode scanner - portable |
Colour: | Industrial green |
Barcode | |
Interface Type: | Bluetooth 4.0 |
Minimum Bar Width: | 5 mil |
Sensor Resolution: | 1280 x 960 |
Skew (Degrees): | 60 |
Pitch (Degrees): | 60 |
Print Contrast Signal (PCS): | 15% |
Decode Capability: | Aztec code, China Han Xin Code, Codabar, Code 11, Code 128, Code 3 of 5, Code 39, Code 93, Data Matrix, GS1 DataBar, Industrial 2 of 5, Italy Pharmacode, MaxiCode, Micro QR code, MicroPDF417, MSI-Plessey, NW-7, PDF417, QR code, TLC39, UPC/EAN supplementals |
TTL Decoding: | Decoded |
Connectivity Technology: | Wireless |
OK Notification: | Beeper, LED indicator, vibration |
Features: | Rugged, standard range scanning |
Networking | |
Wireless Connectivity: | Bluetooth 4.0 LE |
Expansion / Connectivity | |
Interfaces: | 1 x USB |
Miscellaneous | |
Included Accessories: | Cradle |
Cables Included: | 1 x USB cable - external |
Compliant Standards: | IP67, EN 50581:2012, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, RoHS, IEC 60950-1:2005 + A1:2009 + A2:2013, CAN/CSA C22.2 No. 60950-1-07, UL 60950-1 Second Edition, CU, EN 62471:2008, IEC 62471:2006, UL, VDE, EN 55022:2010/AC:2011, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-6-2, EN 60601-1-2:2007, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class B, ICES-003 issue 5 Class B, IEC 60601-1-2:2007 |
Power | |
Power Device: | Power adapter |
Battery: | 1 x Lithium Ion |
Dimensions & Weight | |
Width: | 7.6 cm |
Depth: | 14.2 cm |
Height: | 18.5 cm |
Weight: | 411 g |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Environmental Parameters | |
Min Operating Temperature: | -20 °C |
Max Operating Temperature: | 50 °C |
Humidity Range Operating: | 5 - 95% (non-condensing) |
Drop Specification: | 2.4 m to concrete |
Every day, workers in your warehouse and on the manufacturing plant floor scan thousands of barcodes to ensure product quality and on-time order delivery. Their productivity depends on the quality of the scanner you put in their hands. When workers need to capture 1D and 2D barcodes at standard ranges, with cordless DS3678-SR scanner, you can give them the best - unmatched rugged design, unmatched scanning performance and unrivaled manageability.
The advanced imager delivers lightning-fast capture of any 1D or 2D barcode printed on a label in virtually any condition or displayed on a screen, from near contact to nearly 5 ft. /1.5 m away. And when it comes to cordless technology, the DS3678-SR is in a class of its own, with a complete solution that includes a smart battery and Zebra"s Wi-Fi friendly mode that prevents interference with your Wi-Fi network.
The advanced imager delivers lightning-fast capture of any 1D or 2D barcode printed on a label in virtually any condition or displayed on a screen, from near contact to nearly 5 ft. /1.5 m away. And when it comes to cordless technology, the DS3678-SR is in a class of its own, with a complete solution that includes a smart battery and Zebra"s Wi-Fi friendly mode that prevents interference with your Wi-Fi network.
The technical details come from 3rd party. edgemo is not responsible for any errors.
