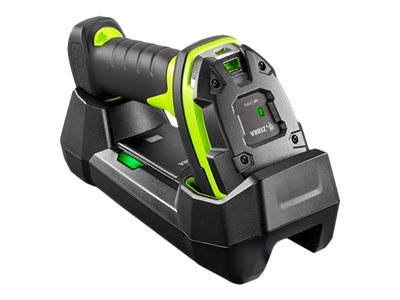

Zebra DS3678-ER - barcode scanner
SKU DS3678-ER3U42A2SVW
Product Description: | Zebra DS3678-ER - barcode scanner |
Type: | Barcode scanner - portable - Bluetooth 4.0, keyboard wedge, RS-232, USB - decoded |
Colour: | Industrial green |
Minimum Bar Width: | 3 mil |
Scan Element Type: | 2D imager |
Connectivity Technology: | Wireless, wired |
Wireless Connectivity: | Bluetooth 4.0 LE |
- Specifications
- Description
General | |
Type: | Barcode scanner - portable |
Colour: | Industrial green |
Barcode | |
Interface Type: | Bluetooth 4.0, keyboard wedge, RS-232, USB |
Minimum Bar Width: | 3 mil |
Scan Element Type: | 2D imager |
Scan Mode: | Single-pass |
Skew (Degrees): | 60 |
Pitch (Degrees): | 60 |
Decode Capability: | Aztec code, China Han Xin Code, Data Matrix, GS1 DataBar, MaxiCode, Micro QR code, MicroPDF417, PDF417, QR code, TLC39 |
TTL Decoding: | Decoded |
Connectivity Technology: | Wireless, wired |
OK Notification: | Beeper, LED indicator, vibration |
Features: | Rugged |
Networking | |
Wireless Connectivity: | Bluetooth 4.0 LE |
Expansion / Connectivity | |
Interfaces: | 1 x USB ¦ 1 x keyboard wedge ¦ 1 x RS-232 |
Miscellaneous | |
Included Accessories: | Cradle |
Cables Included: | 1 x USB cable - external |
Compliant Standards: | IP67, EN 50581:2012, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, RoHS, IEC 60950-1:2005 + A1:2009 + A2:2013, CAN/CSA C22.2 No. 60950-1-07, UL 60950-1 Second Edition, CU, EN 62471:2008, IEC 62471:2006, UL, VDE, EN 55022:2010/AC:2011, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-6-2, EN 60601-1-2:2007, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class B, ICES-003 issue 5 Class B, IEC 60601-1-2:2007 |
Power | |
Power Device: | Power adapter |
Battery: | 1 x Lithium Ion |
Dimensions & Weight | |
Width: | 7.7 cm |
Depth: | 14.3 cm |
Height: | 18.5 cm |
Weight: | 436 g |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Environmental Parameters | |
Min Operating Temperature: | -20 °C |
Max Operating Temperature: | 50 °C |
Humidity Range Operating: | 5 - 95% (non-condensing) |
Drop Specification: | 2.4 m to concrete |
The practically indestructible DS3678-ER cordless scanners are ready for one of the world's toughest environments - the warehouse. Designed to capture any 1D or 2D barcode from near contact to as far as 70 ft./21.4 m away, these scanners provide the ultimate in versatility - workers can capture large picklist codes and small codes at near contact as easily as barcodes on pallets and location codes on the top of your warehouse racks. And truly unstoppable performance helps you drive throughput, accuracy and customer service to a great level.
- Superior performance
- Ultra-rugged design
- Unrivaled manageability
