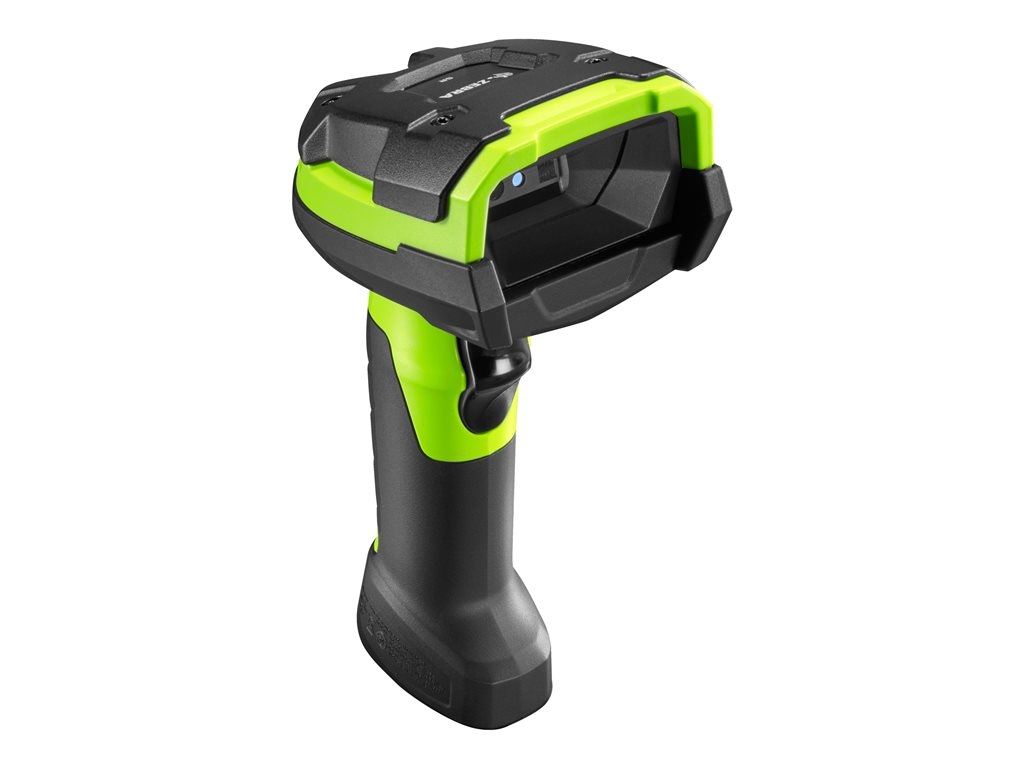

Printers & POSZebra DS3608-SR - barcode scanner
SKU DS3608-SR00003VZWW
| Product Description: | Zebra DS3608-SR - barcode scanner |
| Type: | Barcode scanner - handheld - decoded |
| Colour: | Black, green |
| Minimum Bar Width: | 5 mil |
| Scan Element Type: | 2D imager |
| Connectivity Technology: | Wired |
| Dimensions (WxDxH): | 7.6 cm x 13.2 cm x 18.5 cm |
- Specifications
- Description
| General | |
| Type: | Barcode scanner - handheld |
| Colour: | Black, green |
| Barcode | |
| Minimum Bar Width: | 5 mil |
| Scan Element Type: | 2D imager |
| Max Working Distance: | 35 cm |
| Skew (Degrees): | 50 |
| Pitch (Degrees): | 60 |
| Print Contrast Signal (PCS): | 25% |
| Decode Capability: | EAN/JAN, Code 93, Code 39, UCC/EAN-128, NW-7, IATA, GS1 DataBar, QR code, MaxiCode, Bookland, Code 32, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, Discrete 2 of 5, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Australian Post, Japanese Post, Code 128 Full ASCII, Code 39 Trioptic, Dutch Post, UK Post |
| TTL Decoding: | Decoded |
| Connectivity Technology: | Wired |
| OK Notification: | Beeper, LED indicator |
| Features: | Reduced Space Symbology (RSS), Two-Position Smart Focus, rugged |
| Miscellaneous | |
| Compliant Standards: | EN 60950, IEC950, UL 1950, IEC 60529 IP65, ICES-003 Class B, FCC Part 15 B, EMC, RoHS, CSA C22.2 No. 950 |
| Dimensions & Weight | |
| Width: | 7.6 cm |
| Depth: | 13.2 cm |
| Height: | 18.5 cm |
| Weight: | 305 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | -30 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
As a member of the Zebra 3600 ultra-rugged series of scanners, the practically indestructible 1D/2D DS3608-SR scanners are ready for tough environments - the warehouse and manufacturing floor. Designed to capture virtually any barcode, these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity. The result? The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.
- Superior performance
- Ultra-rugged design
- Unrivaled manageability
The technical details come from 3rd party. edgemo is not responsible for any errors.
