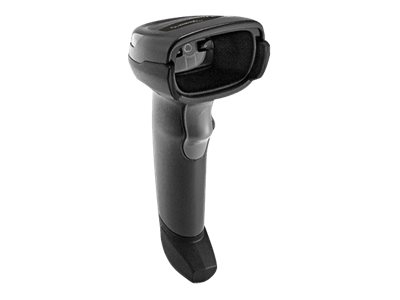

Printers & POSZebra DS2278 - Standard Range (SR) - barcode scanner
SKU DS2278-SR7U2100PRW
| Product Description: | Zebra DS2278 - Standard Range (SR) - barcode scanner |
| Type: | Barcode scanner - handheld - Bluetooth 4.0 - decoded |
| Colour: | Black |
| Minimum Bar Width: | 4 mil |
| Scan Element Type: | 2D imager |
| Sensor Resolution: | 640 x 480 |
| Scan Speed: | 762 mm / sec |
- Specifications
- Description
| General | |
| Type: | Barcode scanner - handheld |
| Colour: | Black |
| Barcode | |
| Interface Type: | Bluetooth 4.0 |
| Minimum Bar Width: | 4 mil |
| Scan Element Type: | 2D imager |
| Sensor Resolution: | 640 x 480 |
| Light Source Wave Length: | 645 nm |
| Scan Mode: | Single-pass |
| Scan Speed: | 762 mm / sec |
| Max Working Distance: | 36.8 cm |
| Skew (Degrees): | 65 |
| Pitch (Degrees): | 65 |
| Print Contrast Signal (PCS): | 25% |
| Decode Capability: | Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code, Korean 2 of 5 |
| TTL Decoding: | Decoded |
| Connectivity Technology: | Wireless |
| OK Notification: | Beeper, LED indicator |
| Networking | |
| Wireless Connectivity: | Bluetooth 4.0 LE |
| Miscellaneous | |
| Included Accessories: | Cradle |
| Cables Included: | 1 x USB cable - external |
| Compliant Standards: | EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, RoHS, UL 60950-1, IEC 60950-1, CAN/CSA C22.2 No. 60950, EN 50581, IEC 62471, FCC CFR47 Part 15 B Class B, EN 55032 Class B, ICES-003 issue 6 Class B, EN60950-1 (2nd Edition) + A11 + A1 + A12 + A2:2013, EN60950-1 (2nd Edition) + A1 + A2 |
| Power | |
| Battery: | Lithium Ion |
| Dimensions & Weight | |
| Width: | 6.6 cm |
| Depth: | 9.9 cm |
| Height: | 17.5 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Drop Specification: | 1.5 m to concrete |
With the DS2200 series, you can scan it all. You get an affordable 1D/2D imager that doesn't compromise performance or features for price. The DS2200 series - the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
- Easy to deploy
- Easy to use
- Easy to manage
The technical details come from 3rd party. edgemo is not responsible for any errors.
