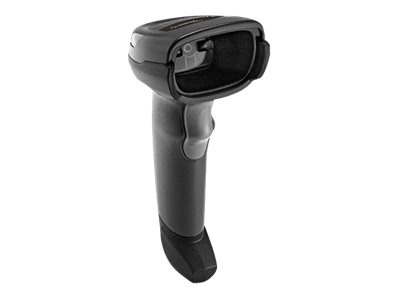

Printers & POSZebra DS2208 - barcode scanner
SKU DS2208-SR00007ZZWW
| Product Description: | Zebra DS2208 - barcode scanner |
| Type: | Barcode scanner - handheld - interface cable required - decoded |
| Colour: | Twilight black |
| Minimum Bar Width: | 4 mil |
| Scan Element Type: | 2D imager |
| Sensor Resolution: | 640 x 480 |
| Scan Speed: | 762 mm / sec |
- Specifications
- Description
| General | |
| Type: | Barcode scanner - handheld |
| Colour: | Twilight black |
| Barcode | |
| Interface Type: | Interface cable required |
| Minimum Bar Width: | 4 mil |
| Scan Element Type: | 2D imager |
| Sensor Resolution: | 640 x 480 |
| Light Source Wave Length: | 645 nm |
| Scan Mode: | Single-pass |
| Scan Speed: | 762 mm / sec |
| Max Working Distance: | 36.8 cm |
| Skew (Degrees): | 65 |
| Pitch (Degrees): | 65 |
| Print Contrast Signal (PCS): | 25% |
| Decode Capability: | Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code |
| TTL Decoding: | Decoded |
| Connectivity Technology: | Wired |
| OK Notification: | Beeper, LED indicator |
| Miscellaneous | |
| Compliant Standards: | UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, IP42, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B |
| Dimensions & Weight | |
| Width: | 6.6 cm |
| Depth: | 9.9 cm |
| Height: | 16.5 cm |
| Weight: | 161.6 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Drop Specification: | 1.5 m to concrete |
2D barcodes have made their way to your point of sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can't capture the 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.
Your 1D scanner can't capture the 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.
- Easy to deploy
- Easy to use
- Easy to manage
The technical details come from 3rd party. edgemo is not responsible for any errors.
