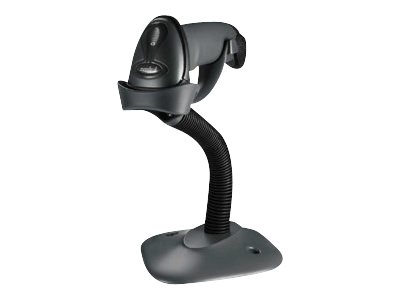

Printers & POSSymbol LS2208 - barcode scanner
SKU LS2208-SR20007R-UR
| Product Description: | Symbol LS2208 - barcode scanner |
| Type: | Barcode scanner - handheld - USB - decoded |
| Colour: | Twilight black |
| Scan Element Type: | Visible laser diode |
| Scan Speed: | 100 scan / sec |
| Connectivity Technology: | Wired |
| Dimensions (WxDxH): | 6.3 cm x 8.4 cm x 15.2 cm |
- Specifications
- Description
| General | |
| Type: | Barcode scanner - handheld |
| Colour: | Twilight black |
| Barcode | |
| Interface Type: | USB |
| Scan Element Type: | Visible laser diode |
| Light Source Wave Length: | 650 nm |
| Scan Mode: | Single-pass |
| Scan Speed: | 100 scan / sec |
| Max Working Distance: | 43 cm |
| Skew (Degrees): | 60 |
| Pitch (Degrees): | 65 |
| Print Contrast Signal (PCS): | 20% |
| Decode Capability: | EAN/JAN, Code 93, Code 39, UCC/EAN-128, IATA, GS1 DataBar, Code 39 Full ASCII, Discrete 2 of 5, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, MSI-Plessey, Code 128 Full ASCII |
| TTL Decoding: | Decoded |
| Connectivity Technology: | Wired |
| OK Notification: | Beeper, LED indicator |
| Features: | Advanced Data Formatting (ADF) |
| Expansion / Connectivity | |
| Interfaces: | 1 x USB - Type A |
| Miscellaneous | |
| Included Accessories: | Stand |
| Cables Included: | 1 x USB cable - external |
| Compliant Standards: | VCCI, EN 60950, IEC 950, UL 1950, CSA 22.2 No. 950, ICES-003 Class B, FCC Part 15 B, MITI, EMC, RoHS |
| Dimensions & Weight | |
| Width: | 6.3 cm |
| Depth: | 8.4 cm |
| Height: | 15.2 cm |
| Weight: | 146 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 95% |
| Drop Specification: | 1.5 m to concrete |
The Symbol LS2208 handheld scanner delivers performance features at an affordable price to make your buying decision easier than ever. If you're seeking investment protection in a scanner that's small and light enough for maximum productivity, then the LS 2208 is the ideal scanner for you.
- Durable single-board construction
- Scratch-resistant tempered glass exit window
- Accurate first-time capture of 1D bar codes
- Wide working range
- Multiple onboard interfaces
- Plug-and-Play, with universal cable
- Intuitive design
- Ergonomic, lightweight design
- Advanced Data Formatting (ADF)
The technical details come from 3rd party. edgemo is not responsible for any errors.
