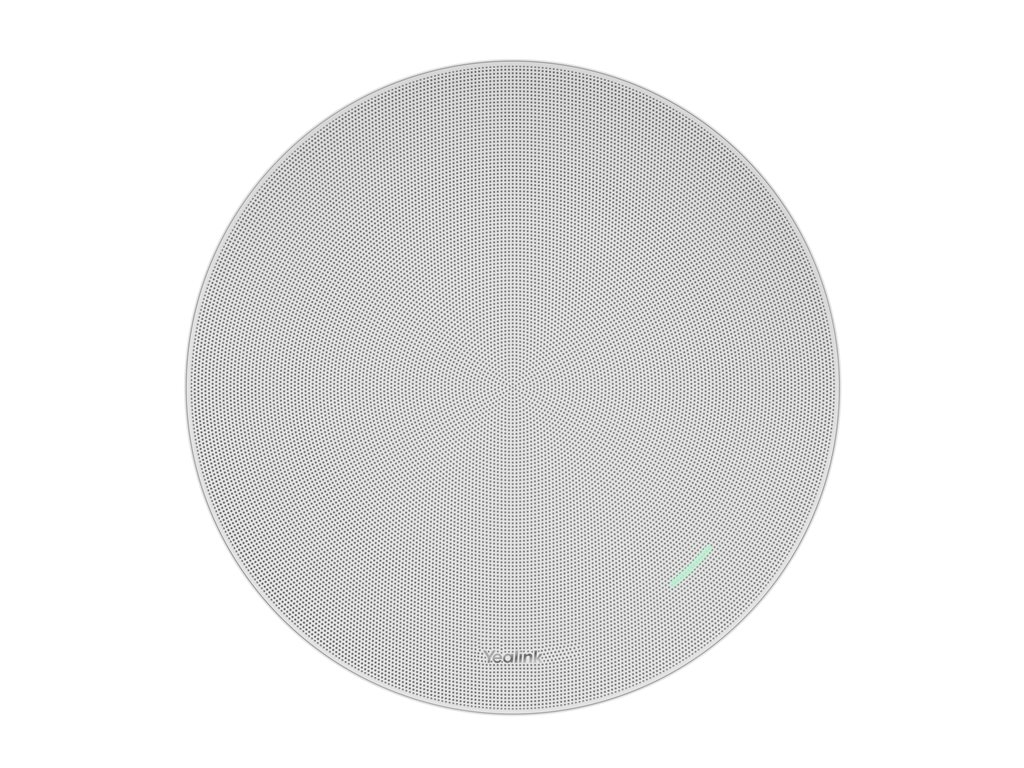

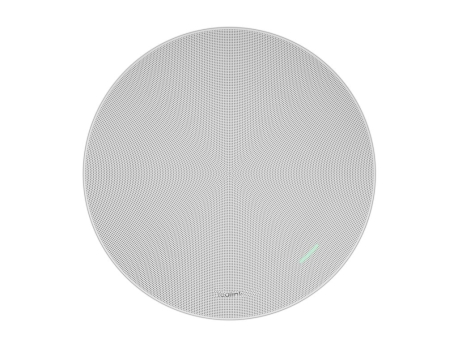

Yealink CS10 - IP speaker - for conference system
SKU 1303094
Product Description: | Yealink CS10 - IP speaker - for conference system |
Product Type: | IP speaker - for conference system |
Speaker Type: | Coaxial - 2-way - active |
Continuous Power: | 20 Watt |
Nominal Impedance: | 8 Ohm |
Amplifier: | Integrated |
Colour: | White |
- Specifications
- Description
General | |
Product Type: | IP speaker - for conference system |
Enclosure Colour: | White |
Enclosure Material: | Aluminium alloy, fibreglass-reinforced polyamide, ABS polycarbonate |
Design Features: | Paintable grille |
Grille Colour: | White |
Speaker System | |
Speaker Type: | Coaxial - 2-way - active |
Continuous Power: | 20 Watt |
Frequency Response (-6dB): | 100 - 20000 Hz |
Nominal Impedance: | 8 Ohm |
Max Output Level (Max SPL): | 99 dB |
Sensitivity: | 88 dB (1W@1m) |
Amplifier: | Integrated |
Coverage: | 120° |
Recommended Placing: | Ceiling mountable |
Detachable Grilles: | Yes |
Speaker System Details | |
Driver Details: | Speaker: woofer driver - 5.7" ¦ Speaker: tweeter driver - 1.1" |
Connections | |
Connector Type: | Network (RJ-45) |
Miscellaneous | |
Included Accessories: | Magnetic speaker grille, mounting bracket, dust cover, screws |
Compliant Standards: | UL 2043, IEEE 802.3at, PoE+ |
Power | |
Power Source: | Power over Ethernet (PoE) |
Dimensions & Weight | |
Diameter: | 28.72 cm |
Depth: | 12.5 cm |
Weight: | 2.808 kg |
Dimensions (WxDxH) / Weight Details: | Cover: / 207 g |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 50 °C |
Min Storage Temperature: | 0 °C |
Max Storage Temperature: | 50 °C |
Humidity Range Operating: | 5 - 90% |
The Yealink CS10, a low-profile (120mm) 2-way coaxial network speaker, excels in video conferencing with its exceptional audio performance. Designed specifically for the modern meeting environment, the CS10 blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms. Versatile and engineered for ease of use, the CS10 is a PoE-enabled speaker that can optionally deploy with variety supplementary components, simplifying installation across diverse ceiling types. Its covert design, establishes the CS10 as more than just a speaker - it is an essential addition to your meeting space, enhancing both visual and auditory experiences.
