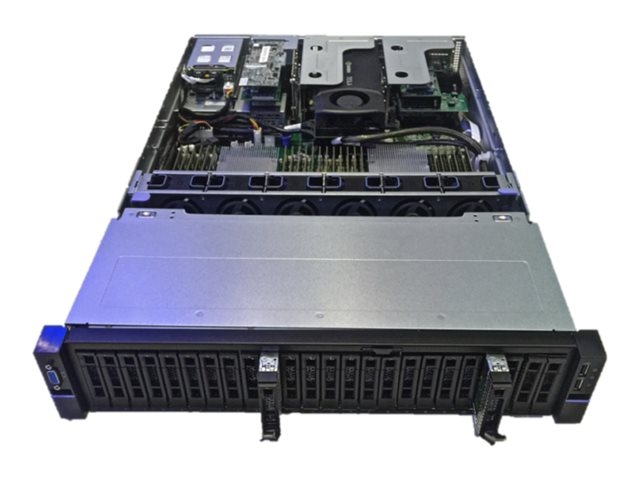

Printers & POSWD Ultrastar Serv24 SS2U24PUR-1007 - NAS server - 38.4 TB
SKU 1ES1008
| Product Description: | WD Ultrastar Serv24 SS2U24PUR-1007 - NAS server - 38.4 TB |
| Device Type: | NAS server |
| Host Connectivity: | 10 Gigabit Ethernet |
| Total Storage Capacity: | 38.4 TB |
| Installed Devices / Modules Qty: | 24 (installed) / 24 (max) |
| Dimensions (WxDxH): | 44.8 cm x 76 cm x 8.7 cm |
| Weight: | 24.9 kg () |
- Specifications
- Description
| General | |
| Device Type: | NAS server |
| Host Connectivity: | 10 Gigabit Ethernet |
| Total Storage Capacity: | 38.4 TB |
| Installed Devices / Modules Qty: | 24 (installed) / 24 (max) |
| Width: | 44.8 cm |
| Depth: | 76 cm |
| Height: | 8.7 cm |
| Weight: | 24.9 kg () |
| Processor / Memory | |
| Processors Installed: | Intel Xeon Gold 5120 2.2 GHz |
| Number of Cores: | 14-core |
| RAM: | 256 GB |
| Hard Drive | |
| Type: | SSD |
| Capacity: | 24 x 1.6 TB |
| Interface Type: | PCI Express 3.0 x16 |
| Features: | Boot drive, Instant Secure Erase (ISE), Enterprise, NVM Express (NVMe) |
| Drive Writes Per Day (DWPD): | 1.7 |
| Networking | |
| Data Link Protocol: | 10 GigE |
| Remote Management Protocol: | IPMI 2.0 |
| Features: | Open Compute Project (OCP) 2.0 support, hot swappable 5+1 60mm fans |
| Compliant Standards: | OCP 2.0 |
| Expansion / Connectivity | |
| Expansion Bays: | 24 x internal |
| Expansion Slots: | 2 x PCI Express 3.0 x16 ¦ 1 x PCI Express 3.0 x8 |
| Interfaces: | 2 x Ethernet 10Gb ¦ 2 x USB 3.0 ¦ 1 x VGA ¦ 1 x serial - DB-9 ¦ 1 x Ethernet (management) - RJ-45 |
| Miscellaneous | |
| Features: | Intelligent Platform Management Interface (IPMI) |
| Power | |
| Installed Qty: | 2 |
| Max Supported Qty: | 2 |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Voltage Required: | AC 120/230 V |
| Power Provided: | 1200 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | 5 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
The Ultrastar Serv24 integrates Intel Xeon CPUs and NVMe SSDs in the same unit to deliver a performance-optimized platform for Software-Defined Storage (SDS). Chipset, core count, and power can be customized to match varying data workload and performance requirements.
Whether as a stand-alone file server or part of a scale-out deployment, the Ultrastar Serv24 is built to deliver high performance for SDS environments. With low latency and consistently high bandwidth, data is accelerated to the speed of flash.
Whether as a stand-alone file server or part of a scale-out deployment, the Ultrastar Serv24 is built to deliver high performance for SDS environments. With low latency and consistently high bandwidth, data is accelerated to the speed of flash.
- High-performance Intel “Purley”-based server with a choice of CPUs
- Up to 184TB raw capacity in 2U
- 2 PCIe x16 slots available for add-in cards
- Enterprise-grade redundant and hot-swappable PSUs and fans
The technical details come from 3rd party. edgemo is not responsible for any errors.
