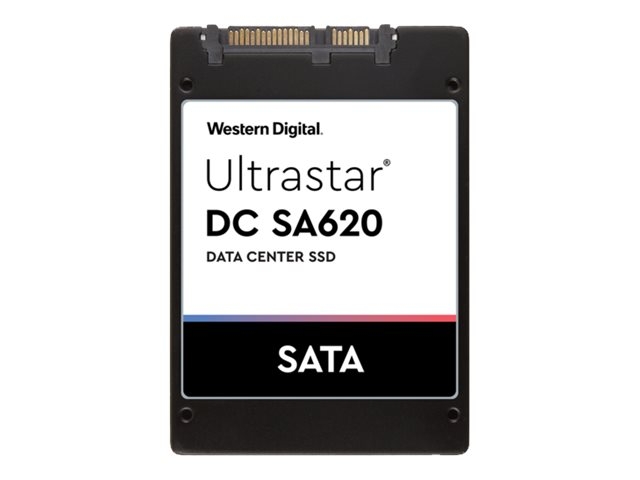

Printers & POSWD Ultrastar DC SA620 SDLF1DAM-800G-1HA1 - SSD - 800 GB - SATA 6Gb/s
SKU 0TS1820
| Product Description: | WD Ultrastar DC SA620 SDLF1DAM-800G-1HA1 - SSD - 800 GB - SATA 6Gb/s |
| Type: | Solid state drive - internal |
| Capacity: | 800 GB |
| NAND Flash Memory Type: | 15nm multi-level cell (MLC) |
| Form Factor: | 2.5" |
| Interface: | SATA 6Gb/s |
| Data Transfer Rate: | 600 MBps |
- Specifications
- Description
| General | |
| Device Type: | Solid state drive - internal |
| Capacity: | 800 GB |
| NAND Flash Memory Type: | 15nm multi-level cell (MLC) |
| Form Factor: | 2.5" |
| Interface: | SATA 6Gb/s |
| Features: | Guardian Technology Platform, 24x7 availability, power loss data protection |
| Width: | 69.85 mm |
| Depth: | 100.2 mm |
| Height: | 7.17 mm |
| Weight: | 89.9 g |
| Performance | |
| Drive Writes Per Day (DWPD): | 1.8 |
| SSD Endurance: | 2628 TB |
| Drive Transfer Rate: | 600 MBps (external) |
| Internal Data Rate: | 512 MBps (read) / 445 MBps (write) |
| 4KB Random Read: | 76000 IOPS |
| 4KB Random Write: | 32000 IOPS |
| Reliability | |
| MTBF: | 2,500,000 hours |
| 24x7 Operation: | Yes |
| Non-Recoverable Errors: | 1 per 10^17 |
| Expansion & Connectivity | |
| Interfaces: | 1 x SATA 6 Gb/s |
| Compatible Bay: | 2.5" |
| Power | |
| Power Consumption: | 3.8 Watt (sequential write) ¦ 2.6 Watt (sequential read) ¦ 1.6 Watt (idle) |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 70 °C |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 85 °C |
Ultrastar DC SA620 is a flash-based SATA SSD that offers high capacity and works within existing infrastructure. With data center features to support "mission-critical" types of data services, Ultrastar DC SA620 delivers a balance of storage capacity and performance. DC SA620 is well-suited to support demanding tiers of service at multi-petabyte capacity levels.
Ultrastar DC SA620 price/performance value is achieved by leveraging enterprise-class performance to enable cloud storage and compute density without the sacrifice of a low latency QoS or write operations.
Ultrastar DC SA620 price/performance value is achieved by leveraging enterprise-class performance to enable cloud storage and compute density without the sacrifice of a low latency QoS or write operations.
- High capacity
- Optimized to help scale cloud and hyperscale environments
- 6Gb/s SATA interface works with existing infrastructure
- Advanced power loss data management technology
The technical details come from 3rd party. edgemo is not responsible for any errors.
