Printers & POSWD Travelstar Z7K500 HTS725025A7E630 - hard drive - 250 GB - SATA 6Gb/s
SKU 0J38072

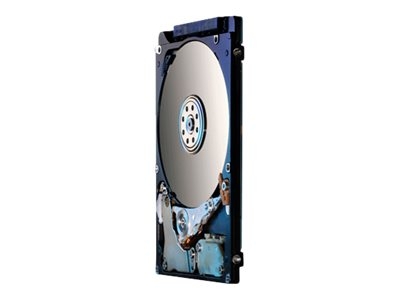

| Product Description: | WD Travelstar Z7K500 HTS725025A7E630 - hard drive - 250 GB - SATA 6Gb/s |
| Type: | Hard drive - internal |
| Capacity: | 250 GB |
| Form Factor: | 2.5" |
| Interface: | SATA 6Gb/s |
| Data Transfer Rate: | 600 MBps |
| Buffer Size: | 32 MB |
- Specifications
- Description
| General | |
| Device Type: | Hard drive - internal |
| Capacity: | 250 GB |
| Form Factor: | 2.5" |
| Interface: | SATA 6Gb/s |
| Buffer Size: | 32 MB |
| Bytes per Sector: | 512 |
| Features: | TrueTrack servo technology, advanced format 4Kn |
| Width: | 70 mm |
| Depth: | 100 mm |
| Height: | 7 mm |
| Weight: | 95 g |
| Performance | |
| Drive Transfer Rate: | 600 MBps (external) |
| Internal Data Rate: | 171 MBps |
| Seek Time: | 13 ms (average) / 25 ms (max) |
| Track-to-Track Seek Time: | 1 ms |
| Average Latency: | 4.2 ms |
| Spindle Speed: | 7200 rpm |
| Reliability | |
| Start / Stop Cycles: | 600,000 |
| Expansion & Connectivity | |
| Interfaces: | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
| Compatible Bay: | 2.5" |
| Power | |
| Power Consumption: | 0.1 Watt (sleep) ¦ 0.2 Watt (standby) ¦ 0.8 Watt (low power idle) ¦ 1 Watt (active idle) ¦ 1.7 Watt (performance idle) ¦ 1.8 Watt (read) ¦ 1.8 Watt (write) ¦ 2.1 Watt (seek) ¦ 5.5 Watt (start) |
| Miscellaneous | |
| Compliant Standards: | RoHS, halogen-free, EcoTrac |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 60 °C |
| Shock Tolerance (operating): | 400 g @ 2 ms half-sine pulse |
| Shock Tolerance (non-operating): | 1000 g @ 1 ms half-sine pulse |
Travelstar Z7K500 is the 7200 rpm 2.5-inch hard drive from Hitachi, leveraging advanced format, which increases the physical sector size to improve drive capacities and error correction capabilities. Travelstar Z7K500 is the 2.5-inch HDD with a 6 Gb/s SATA interface and delivers the highest 7200 rpm performance. The Z7K500 carries the EcoTrac classification due to its low-power consumption and eco-friendly, halogen-free production. Travelstar Z7K500 balances speed, power-efficiency and design flexibility to meet the needs of mobile applications.
- Single-disk design
- Advanced format
- 6 Gb/s SATA interface on a mobile HDD
- Low power consumption
- Halogen-free for eco-friendly design
- Self-encrypting models for data security
- Enhanced-availability (EA) models for applications needing around-the-clock access in lower-transaction environments
The technical details come from 3rd party. edgemo is not responsible for any errors.
