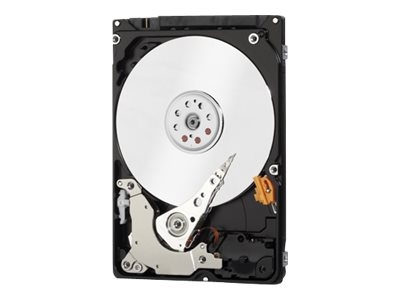

Printers & POSWD Travelstar Z5K500.B HTS545050B7E660 - hard drive - SATA 6Gb/s
SKU 1W10013
| Product Description: | WD Travelstar Z5K500.B HTS545050B7E660 - hard drive - SATA 6Gb/s |
| Type: | Hard drive - internal |
| Form Factor: | 2.5" |
| Interface: | SATA 6Gb/s |
| Data Transfer Rate: | 600 MBps |
| Buffer Size: | 16 MB |
| Spindle Speed: | 5400 rpm |
- Specifications
- Description
| General | |
| Device Type: | Hard drive - internal |
| Form Factor: | 2.5" |
| Interface: | SATA 6Gb/s |
| Buffer Size: | 16 MB |
| Bytes per Sector: | 4000 |
| Features: | Advanced Format technology |
| Width: | 7 cm |
| Depth: | 10 cm |
| Height: | 7 mm |
| Weight: | 92 g |
| Performance | |
| Drive Transfer Rate: | 600 MBps (external) |
| Internal Data Rate: | 147 MBps |
| Seek Time: | 11 ms (average) |
| Average Latency: | 5.5 ms |
| Spindle Speed: | 5400 rpm |
| Reliability | |
| Load / Unload Cycles: | 600,000 |
| Expansion & Connectivity | |
| Interfaces: | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
| Compatible Bay: | 2.5" |
| Power | |
| Power Consumption: | 1.4 Watt (read) ¦ 1.4 Watt (write) ¦ 0.55 Watt (low power idle) ¦ 0.16 Watt (standby) ¦ 1.6 Watt (seek) ¦ 5 Watt (start) ¦ 0.16 Watt (sleep) |
| Miscellaneous | |
| Compliant Standards: | Halogen-free |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 60 °C |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 65 °C |
| Shock Tolerance (operating): | 400 g @ 2 ms half-sine pulse |
| Shock Tolerance (non-operating): | 1000 g @ 2 ms half-sine pulse |
Ideal for use as primary storage in notebooks and external enclosures, the Travelstar Z5K500.B delivers the right mix of capacity, performance and low power consumption in thin and light mobile applications. This 2.5-inch mobile drive supports slim mobile system designs, and is also compatible with most standard 9.5mm bays. A roomy storage capacity holds ample amounts of photos, videos and files. With an operational speed of 5400 RPM, the Z5K500.B is a perfect mainstream storage choice for mobile devices, external storage and gaming consoles.
- Low energy use to help improve battery life for more "unplugged" notebook time
- Strong protection against bumps and rough handling
- Rich audio-listening experience for music, movies and games
- Fast downloads and excellent application performance
- Fast data throughput
The technical details come from 3rd party. edgemo is not responsible for any errors.
