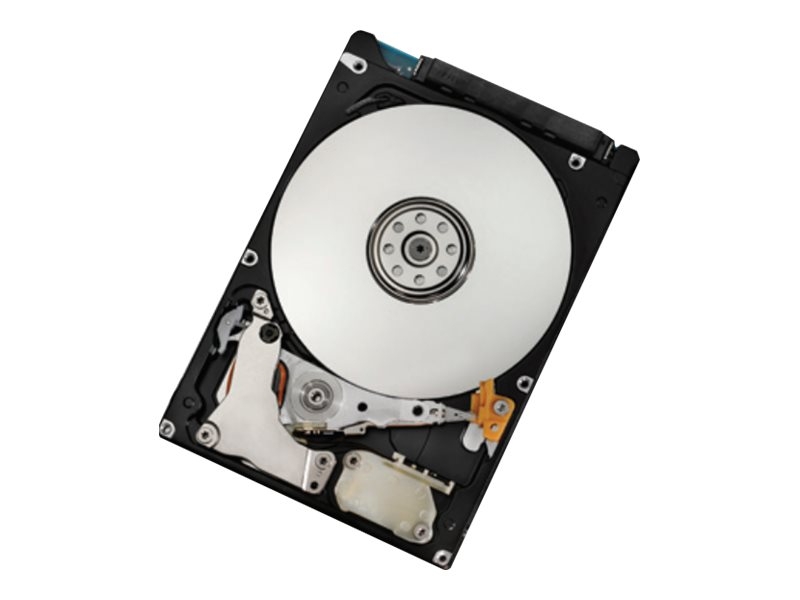

Printers & POSWD CinemaStar Z7K500 HCC725050A7E630 - hard drive - 500 GB - SATA 6Gb/s
SKU 0J26075
| Product Description: | WD CinemaStar Z7K500 HCC725050A7E630 - hard drive - 500 GB - SATA 6Gb/s |
| Type: | Hard drive - internal |
| Capacity: | 500 GB |
| Form Factor: | 2.5" |
| Interface: | SATA 6Gb/s |
| Data Transfer Rate: | 600 MBps |
| Buffer Size: | 32 MB |
- Specifications
- Description
| General | |
| Device Type: | Hard drive - internal |
| Capacity: | 500 GB |
| Form Factor: | 2.5" |
| Interface: | SATA 6Gb/s |
| Buffer Size: | 32 MB |
| Bytes per Sector: | 512 |
| Features: | SilentSeek technology, Thermal Flyheight Control (TFC), Smooth Stream, Advanced Format technology, SMART Command Transport (SCT), 24x7 continuous operation, ERP Control |
| Width: | 70 mm |
| Depth: | 100 mm |
| Height: | 7 mm |
| Weight: | 95 g |
| Performance | |
| Drive Transfer Rate: | 600 MBps (external) |
| Internal Data Rate: | 171 MBps |
| Seek Time: | 15 ms (average) |
| Average Latency: | 4.2 ms |
| Spindle Speed: | 7200 rpm |
| Reliability | |
| 24x7 Operation: | Yes |
| Start / Stop Cycles: | 600,000 |
| Expansion & Connectivity | |
| Interfaces: | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
| Compatible Bay: | 2.5" |
| Power | |
| Power Consumption: | 4.5 Watt (start) ¦ 1.7 Watt (active) ¦ 0.8 Watt (low power idle) |
| Miscellaneous | |
| Compliant Standards: | Halogen-free, EcoTrac |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 70 °C |
| Shock Tolerance (operating): | 325 g @ 2 ms half-sine pulse |
| Shock Tolerance (non-operating): | 350 g @ 2 ms half-sine pulse |
CinemaStar Z7K500 is the one-disk, 7200 RPM, 2.5-inch drive, designed for high-performance A/V streaming with high capacity. These models use Advanced Format and have been customized to support digital video and surveillance applications. Advanced Format increases physical sector size from 512 bytes to 4096 (4K) bytes, thereby increasing capacities and error correction capabilities. The slimmer CinemaStar Z7K500 is designed as a direct replacement for standard HDDs and is well suited for TV integration, multi-tuner digital video recorders and set-top boxes.
- 7200 RPM in a single-disk design
- Advanced Format with 512-byte emulation
- Video hard drive with 24 x 7 availability
- Low power utilization to help reduce energy costs
- SmoothStream technology
- Silent-seek acoustics for quiet operation
- SMART Command Transport (SCT) for streaming optimization
The technical details come from 3rd party. edgemo is not responsible for any errors.
