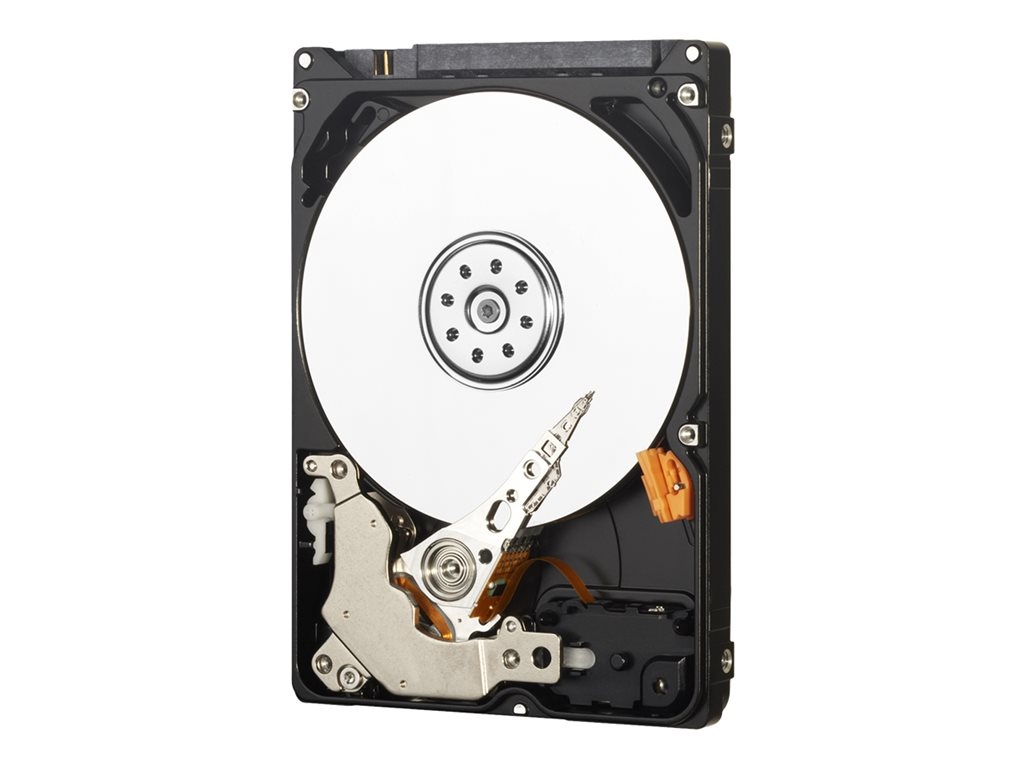

Printers & POSWD AV MN500S-2 WD3200LUCT - hard drive - 320 GB - SATA 3Gb/s
SKU WD3200LUCT
| Product Description: | WD AV MN500S-2 WD3200LUCT - hard drive - 320 GB - SATA 3Gb/s |
| Type: | Hard drive - internal |
| Capacity: | 320 GB |
| Form Factor: | 2.5" |
| Interface: | SATA 3Gb/s |
| Data Transfer Rate: | 300 MBps |
| Buffer Size: | 16 MB |
- Specifications
- Description
| General | |
| Device Type: | Hard drive - internal |
| Capacity: | 320 GB |
| Form Factor: | 2.5" |
| Interface: | SATA 3Gb/s |
| Buffer Size: | 16 MB |
| Bytes per Sector: | 4096 |
| Features: | Fluid Dynamic Bearing (FDB) motor, Data Lifeguard, SilkStream, Perpendicular Magnetic Recording (PMR), Advanced Format technology, power management support, Hot-Plug Support, 24x7 availability, Dynamic fly height technology, S.M.A.R.T. |
| Width: | 69.85 mm |
| Depth: | 100.2 mm |
| Height: | 6.8 mm |
| Weight: | 92 g |
| Performance | |
| Drive Transfer Rate: | 300 MBps (external) |
| Internal Data Rate: | 147 MBps |
| Seek Time: | 11 ms (average) / 12 ms (max) |
| Average Latency: | 5.5 ms |
| Spindle Speed: | 5400 rpm |
| Reliability | |
| 24x7 Operation: | Yes |
| Non-Recoverable Errors: | 1 per 10^14 |
| Load / Unload Cycles: | 600,000 |
| Expansion & Connectivity | |
| Interfaces: | 1 x SATA 3 Gb/s - 22 pin Serial ATA |
| Compatible Bay: | 2.5" |
| Power | |
| Power Consumption: | 4.9 Watt (maximum) ¦ 1.65 Watt (average) ¦ 1.8 Watt (seek) ¦ 1.29 Watt (idle) ¦ 0.16 Watt (standby) ¦ 0.16 Watt (sleep) |
| Miscellaneous | |
| Compliant Standards: | IEC950, EN 60065, AS/NZS 3548, UL 60950-1, BSMI Class B, KCC Class B, CAN/CSA C22.2 No. 60950, EN61000-3-3:1995 + A1:2001, EN55022:2006, EN61000-3-2:2000 + A2:2005, FCC Part 15 Class B, EN 55024:1998+A1:2001+A2:2003 |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 65 °C |
| Humidity Range Operating: | 8 - 90% (non-condensing) |
| Shock Tolerance (operating): | 400 g @ 2 ms half-sine pulse |
| Shock Tolerance (non-operating): | 1000 g @ 2 ms half-sine pulse |
WD AV SATA drives now offer unrivaled storage capacity up to 4 TB - perfect for today's storage intensive applications. These drives are designed to last in high temperature always-on streaming digital audio/video environments such as PVR, DVR and IPTV systems.
- Highest capacity for audio/video storage
- 24x7 reliability
- SilkStream
The technical details come from 3rd party. edgemo is not responsible for any errors.
