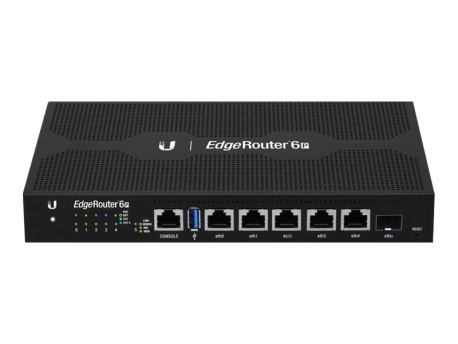

Ubiquiti EdgeRouter ER-6P - router - desktop
SKU ER-6P
Product Description: | Ubiquiti EdgeRouter ER-6P - router - desktop |
Device Type: | Router |
Enclosure Type: | Desktop |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Performance: | Forwarding performance (64-byte packet size): 3400000 packets per second ¦ Forwarding performance (256-byte packet size): 6 Gbps |
Network / Transport Protocol: | PPTP, L2TP, IPSec, PPPoE, DDNS |
Routing Protocol: | OSPF, RIP, BGP, IGMP, VRRP, static IP routing, GRE, OSPFv3, RIPng |
- Specifications
- Description
General | |
Device Type: | Router |
Enclosure Type: | Desktop |
Connectivity Technology: | Wired |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Performance: | Forwarding performance (64-byte packet size): 3400000 packets per second ¦ Forwarding performance (256-byte packet size): 6 Gbps |
Network / Transport Protocol: | PPTP, L2TP, IPSec, PPPoE, DDNS |
Routing Protocol: | OSPF, RIP, BGP, IGMP, VRRP, static IP routing, GRE, OSPFv3, RIPng |
Remote Management Protocol: | SNMP, Telnet, SSH, CLI |
Authentication Method: | RADIUS |
Features: | Flow control, firewall protection, NAT support, VLAN support, IPv6 support, Deep Packet Inspection (DPI), Access Control List (ACL) support, Quality of Service (QoS), DHCP server, reset button, LLDP support, DHCP relay, NetFlow, IGMP proxy, Network Bonding support |
Compliant Standards: | IEEE 802.1Q, IEEE 802.3ad (LACP), IC, FCC |
Processor: | 1 x MIPS MIPS64 1 GHz |
RAM: | 1 GB DDR3 SDRAM |
Flash Memory: | 4 GB |
Status Indicators: | Port transmission speed, link/activity |
Expansion / Connectivity | |
Interfaces: | LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 1 x Ethernet 1000 - SFP (mini-GBIC) ¦ Console: 1 x RJ-45 ¦ USB 3.0: 1 x 9 pin USB Type A |
Power | |
Power Device: | External power adapter - 60 Watt |
Voltage Required: | AC 120/230 V |
Electric Current Required: | 2.5 A |
Power Consumption Operational: | 16 Watt |
Miscellaneous | |
Rack Mounting Kit: | Optional |
Software / System Requirements | |
OS Provided: | Ubiquiti EdgeOS |
Dimensions & Weight | |
Width: | 22.9 cm |
Depth: | 13.65 cm |
Height: | 3.11 cm |
Weight: | 730 g |
Environmental Parameters | |
Min Operating Temperature: | -10 °C |
Max Operating Temperature: | 50 °C |
Humidity Range Operating: | 10 - 90% (non-condensing) |
The EdgeRouter 6P delivers 3.4 million packets per second routing performance in a compact and cost-effective unit.
- Up to 3.4 million packets per second processing with a line rate of up to 6 Gbps
- Versatile design
- Centralized management
