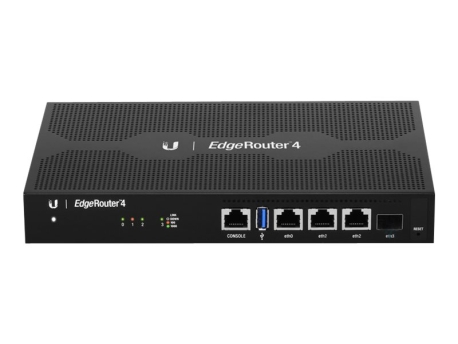

Ubiquiti EdgeRouter ER-4 - router - desktop

SKU ER-4
Product Description:Ubiquiti EdgeRouter ER-4 - router - desktop
Device Type:Router
Enclosure Type:Desktop
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Performance:Forwarding performance (64-byte packet size): 3400000 packets per second ¦ Forwarding performance (128-byte packet size): 4 Gbps
Network / Transport Protocol:PPTP, L2TP, IPSec, PPPoE, DDNS
Routing Protocol:OSPF, RIP, BGP, IGMP, VRRP, static IP routing, GRE, OSPFv3, RIPng
In Stock(80)
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Router
Enclosure Type:Desktop
Connectivity Technology:Wired
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Performance:Forwarding performance (64-byte packet size): 3400000 packets per second ¦ Forwarding performance (128-byte packet size): 4 Gbps
Network / Transport Protocol:PPTP, L2TP, IPSec, PPPoE, DDNS
Routing Protocol:OSPF, RIP, BGP, IGMP, VRRP, static IP routing, GRE, OSPFv3, RIPng
Remote Management Protocol:SNMP, Telnet, SSH, CLI
Authentication Method:RADIUS
Features:Flow control, firewall protection, NAT support, VLAN support, IPv6 support, DPI, ACL support, QoS, DHCP server, reset button, LLDP support, DHCP relay, NetFlow, IGMP proxy, Network Bonding support
Compliant Standards:IEEE 802.1Q, IEEE 802.3ad (LACP), IC, FCC
Processor:1 x MIPS MIPS64 1 GHz
RAM:1 GB DDR3 SDRAM
Flash Memory:4 GB
Status Indicators:Port transmission speed, link/activity
Expansion / Connectivity
Interfaces:LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 1 x Ethernet 1000 - SFP (mini-GBIC) ¦ Console: 1 x RJ-45 ¦ USB 3.0: 1 x 9 pin USB Type A
Power
Power Device:Internal power supply
Voltage Required:AC 120/230 V
Power Consumption Operational:13 Watt
Miscellaneous
Rack Mounting Kit:Optional
Software / System Requirements
OS Provided:Ubiquiti EdgeOS
Dimensions & Weight
Width:22.9 cm
Depth:13.65 cm
Height:3.11 cm
Weight:800 g
Environmental Parameters
Min Operating Temperature:-10 °C
Max Operating Temperature:50 °C
Humidity Range Operating:10 - 90% (non-condensing)
vis mere
The EdgeRouter 4 delivers 3.4 million packets per second routing performance in a compact and cost-effective unit.
  • Up to 3.4 million packets per second processing with a line rate of up to 4 Gbps
  • Versatile design
  • Centralized management




The technical details come from 3rd party. edgemo is not responsible for any errors.
