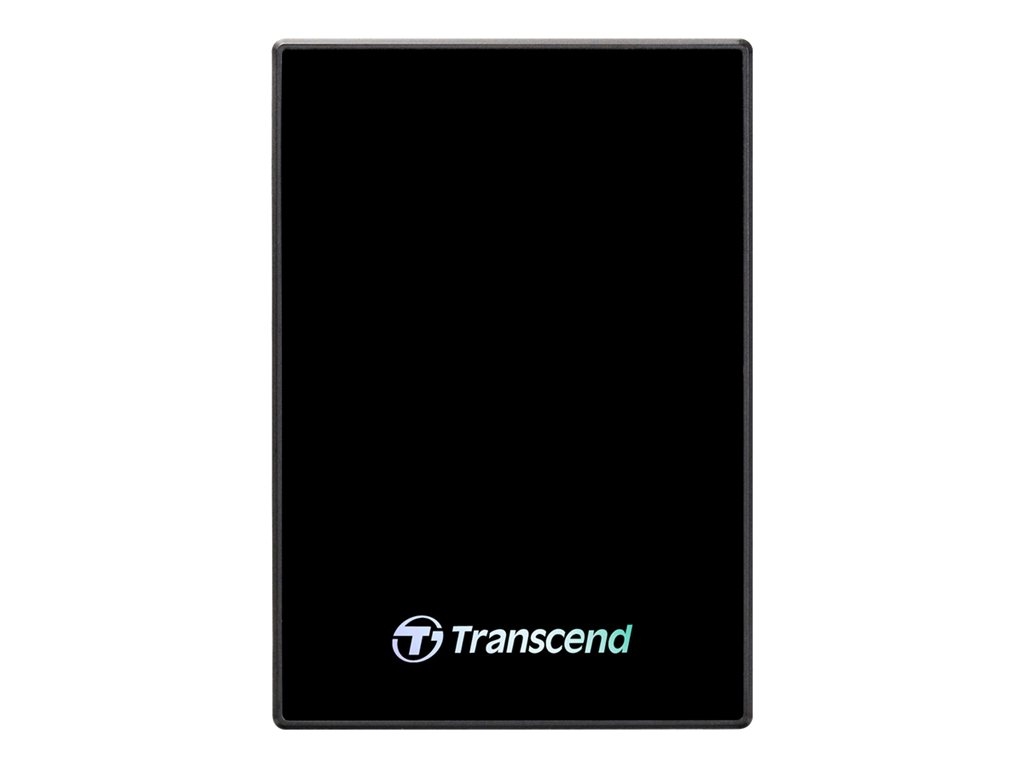

Printers & POSTranscend PSD330 - SSD - 32 GB - IDE/ATA
SKU TS32GPSD330
| Product Description: | Transcend PSD330 - SSD - 32 GB - IDE/ATA |
| Type: | Solid state drive - internal |
| Capacity: | 32 GB |
| NAND Flash Memory Type: | Multi-level cell (MLC) |
| Form Factor: | 2.5" |
| Interface: | IDE/ATA |
| Features: | Shock resistant, DMA supported, Wear Leveling Support, Advanced Power Shield, Error Correction Code (ECC), S.M.A.R.T. |
- Specifications
- Description
| General | |
| Device Type: | Solid state drive - internal |
| Capacity: | 32 GB |
| NAND Flash Memory Type: | Multi-level cell (MLC) |
| Form Factor: | 2.5" |
| Interface: | IDE/ATA |
| Features: | Shock resistant, DMA supported, Wear Leveling Support, Advanced Power Shield, Error Correction Code (ECC), S.M.A.R.T. |
| Width: | 6.985 cm |
| Depth: | 10.03 cm |
| Height: | 0.74 cm |
| Weight: | 55 g |
| Performance | |
| Internal Data Rate: | 119 MBps (read) / 67 MBps (write) |
| Reliability | |
| MTBF: | 1,000,000 hours |
| Expansion & Connectivity | |
| Interfaces: | 1 x IDE/ATAPI - 44 PIN IDC |
| Compatible Bay: | 2.5" |
| Miscellaneous | |
| Compliant Standards: | BSMI, FCC, RoHS, WEEE, IEC 60068-2-27, IEC 60068-2-6, REACH, ISO 9001:2008, ISO 14001:2004, OHSAS 18001-2007 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 70 °C |
| Humidity Range Operating: | 0 - 95% (non-condensing) |
| Shock Tolerance: | 1500 g @ 0.5ms |
| Vibration Tolerance: | 20 g @ 20-2000 Hz (operating) |
Transcend PSD is a series of 2.5 PATA SSD with high performance and advanced flash control techniques. Due to smaller size (fit the standard dimensions of 2.5" IDE hard disk drives), huge capacity, high speed, and low power consumption, solid state disk is perfect replacement storage device for PCs, laptops, gaming systems, and handheld devices.
- RoHS compliant
- Fully compatible with devices and OS that support the IDE standard
- Non-volatile Flash Memory for outstanding data retention
- Built-in ECC (Error Correction Code) functionality and wear-leveling algorithm ensures highly reliable of data transfer
- Shock resistance
- Support S.M.A.R.T function (self-definition)
- Supports security commands
- Advanced global wear-leveling and block management for reliability
- Supports up to Ultra DMA Mode 6
