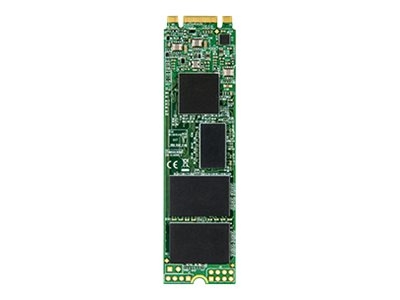

Printers & POSTranscend MTS820 - SSD - 240 GB - SATA 6Gb/s
SKU TS240GMTS820S
| Product Description: | Transcend MTS820 - SSD - 240 GB - SATA 6Gb/s |
| Type: | Solid state drive - internal |
| Capacity: | 240 GB |
| NAND Flash Memory Type: | 3D triple-level cell (TLC) |
| Form Factor: | M.2 2280 |
| Interface: | SATA 6Gb/s |
| Data Transfer Rate: | 600 MBps |
- Specifications
- Description
| General | |
| Device Type: | Solid state drive - internal |
| Capacity: | 240 GB |
| NAND Flash Memory Type: | 3D triple-level cell (TLC) |
| Form Factor: | M.2 2280 |
| Interface: | SATA 6Gb/s |
| Features: | SLC cache, Low-Density Parity Check, DevSleep mode, DDR3 DRAM Cache, Native Command Queuing (NCQ), TRIM support, S.M.A.R.T. |
| Width: | 80 mm |
| Depth: | 22 mm |
| Height: | 3.58 mm |
| Weight: | 9 g |
| Performance | |
| Drive Transfer Rate: | 600 MBps (external) |
| Internal Data Rate: | 560 MBps (read) / 520 MBps (write) |
| 4KB Random Read: | 80000 IOPS |
| 4KB Random Write: | 85000 IOPS |
| Expansion & Connectivity | |
| Interfaces: | 1 x SATA 6 Gb/s - M.2 Card |
| Compatible Bay: | M.2 2280 |
| Software & System Requirements | |
| OS Required: | Linux Kernel 2.6.31 or later, Microsoft Windows 7 / 8 / 8.1 / 10 |
| Miscellaneous | |
| Compliant Standards: | FCC, BSMI |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 70 °C |
Utilizing the SATA interface, Transcend's ultracompact MTS820 M.2 SSD is well-suited to address the high-performance needs and strict size limitations of small form factor devices. By using only high-quality flash chips and enhanced firmware algorithms, Transcend's MTS820 M.2 SSD delivers peerless reliability.
- Space-saving M.2 SATA form factor for ultra-compact computing devices
- SATA interface and SLC caching technology for exceptional transfer speeds
- Engineered with a RAID engine and LDPC coding to ensure data integrity
- Supports Device Sleep Mode to prolong notebook battery life by intelligently shutting down SATA interface when not in use
- Supports S.M.A.R.T., TRIM and NCQ commands
The technical details come from 3rd party. edgemo is not responsible for any errors.
