Printers & POSTranscend - DDR3 - module - 2 GB - DIMM 240-pin - 1333 MHz / PC3-10600 - unbuffered
SKU TS256MLK64V3N
| Product Description: | Transcend - DDR3 - module - 2 GB - DIMM 240-pin - 1333 MHz / PC3-10600 - unbuffered |
| Product Type: | Memory module |
| Capacity: | 2 GB |
| Memory Type: | DDR3 SDRAM - DIMM 240-pin |
| Upgrade Type: | Generic |
| Data Integrity Check: | Non-ECC |
| Speed: | 1333 MHz (PC3-10600) |
- Specifications
- Description
| General | |
| Capacity: | 2 GB |
| Upgrade Type: | Generic |
| Memory | |
| Type: | DRAM memory module |
| Technology: | DDR3 SDRAM |
| Form Factor: | DIMM 240-pin |
| Module Height (inch): | 1.18 |
| Speed: | 1333 MHz (PC3-10600) |
| Latency Timings: | CL9 (9-9-9) |
| Data Integrity Check: | Non-ECC |
| Features: | Single rank, On-Die Termination (ODT), Serial Presence Detect (SPD), unbuffered |
| Module Configuration: | 256 x 64 |
| Chips Organization: | 256 x 8 |
| Voltage: | 1.5 V |
| Miscellaneous | |
| Compliant Standards: | RoHS |
| Manufacturer Warranty | |
| Service & Support: | Limited lifetime warranty |
| Compatibility Information | |
| Designed For: | Acer Aspire X1470-EF308, X1470-UR308 ¦ Acer Veriton M2110G, M2110G_H_EcLP, M4620G, M4620G_Ec, M4620G_H_EcLP, M4620G_Hc, M4620G-EI3212W, M4620G-EI3218W, M4620G-EI3322X, M4620G-EI5333X, M4620G-EI5347W, M4620G-EI7377W, M4620G-EI7377X, M4620G-Ui5333X, M4620G-Ui7377X, M6610, M6610G-MO10W, X2610G-MO20W, X2610G-Ui32120W, X4610G-MO10W, X4610G-UI32100W, X6610G-MO11W ¦ ASUS MAXIMUS V FORMULA, MAXIMUS V FORMULA/ THUNDERFX, MAXIMUS VI EXTREME, MAXIMUS VI HERO ¦ ASUS ROG CG8565, CG8565-ESROG00, CG8565-NR004O ¦ Dell Inspiron One 2330 ¦ Dell Vostro 260s, 270s ¦ Gigabyte G1.Sniper A88X, GA-970A-D3P, GA-970A-UD3P, GA-B75M-D3P, GA-B75M-HD3, GA-B75N, GA-B85M-D3V, GA-B85M-HD3, GA-F2A85X-UP4, GA-H61MA-D3V, GA-H61M-DS2 DVI, GA-H61M-DS2 HDMI, GA-H61M-DS2H, GA-H61M-DS2V, GA-H61M-S2H, GA-H61M-S2P-B3, GA-H61M-WW, GA-H61N-USB3, GA-H67MA-D2H-B3, GA-H67MA-USB3-B3, GA-H67M-D2-B3, GA-H67M-UD2H-B3, GA-H67N-USB3-B3, GA-H81-D3, GA-H87N-WIFI, GA-P61A-D3, GA-P61-USB3-B3, GA-P67A-UD3-B3, GA-P67A-UD7-B3, GA-P67-DS3-B3, GA-P67X-UD3-B3, GA-P67X-UD3R-B3, GA-P85-D3, GA-PA65-UD3-B3, GA-Q87M-D2H, GA-X79-UD5, GA-X79-UD7, GA-Z68A-D3-B3, GA-Z68A-D3H-B3, GA-Z68AP-D3, GA-Z68MA-D2H-B3, GA-Z68MX-UD2H-B3, GA-Z68P-DS3, GA-Z68XP-D3, GA-Z68XP-UD3, GA-Z68XP-UD3-iSSD, GA-Z68XP-UD3P, GA-Z68XP-UD3R, GA-Z68XP-UD4, GA-Z68XP-UD5, GA-Z68X-UD3-B3, GA-Z68X-UD3P-B3, GA-Z68X-UD3R-B3, GA-Z68X-UD4-B3, GA-Z68X-UD5-B3, GA-Z68X-UD7-B3, GA-Z77M-D3H-MVP, GA-Z87M-D3H, GA-Z87M-D3HP, GA-Z87M-HD3, GA-Z87MX-D3H, GA-Z87N-WIFI, GA-Z87P-D3, GA-Z87X-UD5 TH ¦ HP Pavilion 500-000t, 500-010xt, Elite HPE-502c, HPE h9-1010a, HPE h9-1130, HPE h9-1130eg, HPE h9-1151ea Phoenix, p6-2126s, p6-2220t, p6-2405elm, p6654y, p6813w, p7-1001, p7-1003w, p7-1007c, p7-1027c, p7-1036, p7-1037c, p7-1067c, p7-1154, p7-1202 ¦ Intel Desktop Board DB75EN, DB85FL, DH61HO, DH61ZE, DH77DF, DH77EB, DH77KC, DH87MC, DH87RL, DQ77CP, DQ77KB, DQ77MK, DX79SR, DZ68BC, DZ68DB, DZ68ZV, DZ77BH-55K, DZ77RE-75K, DZ77SL-50K, DZ87KLT-75K |

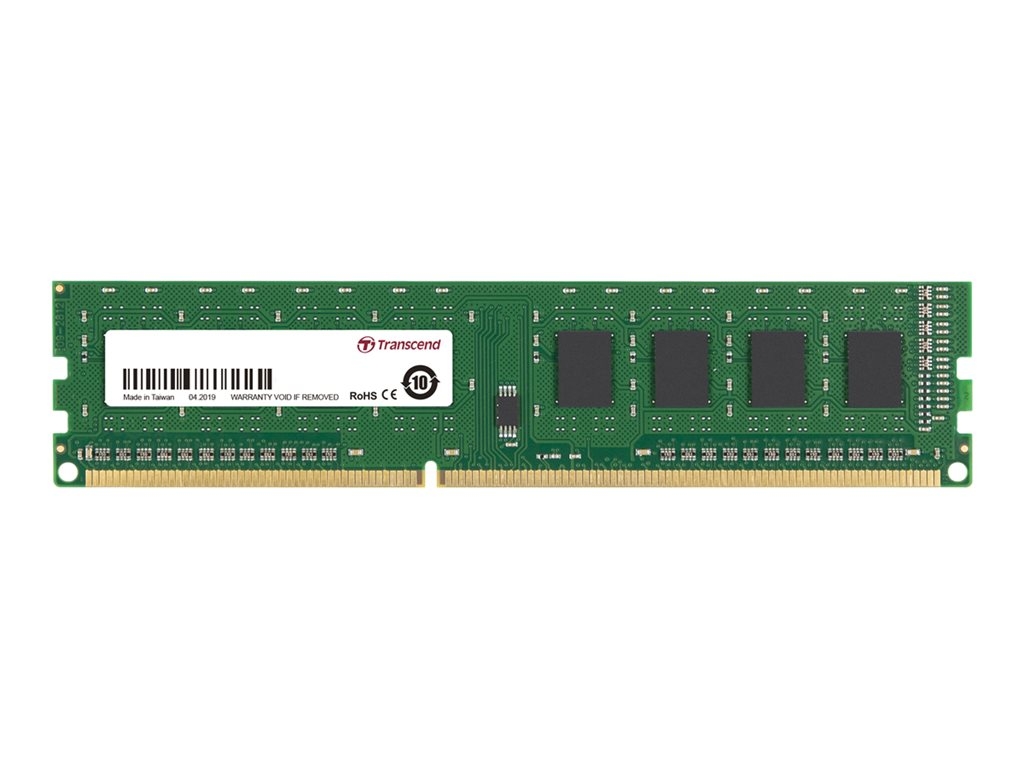

The TS256MLK64V3N is a 256 M x 64-bit DDR3-1333 unbuffered DIMM. The TS256MLK64V3N is a dual in-line memory module and is intended for mounting into 240-pin edge connector sockets.
Synchronous design allows precise cycle control with the use of system clock. Data I/O transactions are possible on both edges of DQS. Range of operation frequencies, programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.
Synchronous design allows precise cycle control with the use of system clock. Data I/O transactions are possible on both edges of DQS. Range of operation frequencies, programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.
- RoHS compliant product
- JEDEC standard 1.5 V ± 0.075 V power supply
- 8-bit pre-fetch
- Bi-directional differential data-strobe
- Internal calibration through ZQ pin
- On die termination with ODT pin
- Serial presence detect with EEPROM
- Asynchronous reset
