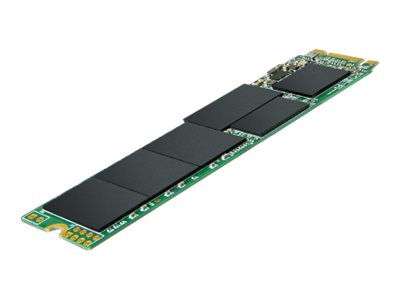

Transcend 832S - SSD - 256 GB - SATA 6Gb/s

SKU TS256GMTS832S

Product Description:	Transcend 832S - SSD - 256 GB - SATA 6Gb/s
Type:	Solid state drive - internal
Capacity:	256 GB
Form Factor:	M.2 2280
Interface:	SATA 6Gb/s
Features:	3D NAND Technology, TRIM support, Native Command Queuing (NCQ), DDR3 DRAM Cache, Advanced Garbage Collection, LDPC error correction, Error Correction Code (ECC), S.M.A.R.T.
Dimensions (WxDxH):	22 mm x 80 mm x 2.23 mm

02-06-2025

Specifications
Description
Accessories

General
Device Type:	Solid state drive - internal
Capacity:	256 GB
Form Factor:	M.2 2280
Interface:	SATA 6Gb/s
Features:	3D NAND Technology, TRIM support, Native Command Queuing (NCQ), DDR3 DRAM Cache, Advanced Garbage Collection, LDPC error correction, Error Correction Code (ECC), S.M.A.R.T.
Width:	22 mm
Depth:	80 mm
Height:	2.23 mm
Weight:	9 g

Performance
Drive Writes Per Day (DWPD):	0.3
SSD Endurance:	140 TB
Internal Data Rate:	530 MBps (read) / 400 MBps (write)
4KB Random Read:	45000 IOPS
4KB Random Write:	70000 IOPS

Reliability
MTBF:	2,000,000 hours

Expansion & Connectivity
Interfaces:	1 x SATA 6 Gb/s
Compatible Bay:	M.2 2280

Software & System Requirements
OS Required:	Microsoft Windows 7 / 8 / 10, Linux Kernel 2.6.31 or later

Miscellaneous
Compliant Standards:	BSMI, FCC

Manufacturer Warranty
Service & Support:	Limited warranty - 5 years

Environmental Parameters
Min Operating Temperature:	0 °C
Max Operating Temperature:	70 °C

vis mere

Transcend's M.2 SSD 832S adopts a single-sided M.2 2280 form factor, making it slimmer and highly compatible with space-limited applications and small form factor devices, such as thin, light notebooks and high-performance PCs.

3D expansion to break through limits
Single-sided design to fit perfectly in small form factor devices
Superior transfer speeds
