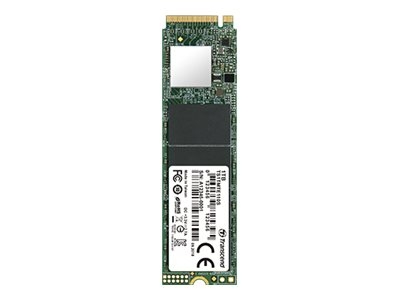

Printers & POSTranscend 110S - SSD - 256 GB - PCIe 3.0 x4 (NVMe)
SKU TS256GMTE110S
| Product Description: | Transcend 110S - SSD - 256 GB - PCIe 3.0 x4 (NVMe) |
| Type: | Solid state drive - internal |
| Capacity: | 256 GB |
| NAND Flash Memory Type: | 3D triple-level cell (TLC) |
| Form Factor: | M.2 2280 |
| Interface: | PCIe 3.0 x4 (NVMe) |
| Features: | NVM Express (NVMe) 1.3, TRIM support, Intelligent SLC Caching, Low-Density Parity Check, Thermal throttling, S.M.A.R.T. |
- Specifications
- Description
| General | |
| Device Type: | Solid state drive - internal |
| Capacity: | 256 GB |
| NAND Flash Memory Type: | 3D triple-level cell (TLC) |
| Form Factor: | M.2 2280 |
| Interface: | PCIe 3.0 x4 (NVMe) |
| Features: | NVM Express (NVMe) 1.3, TRIM support, Intelligent SLC Caching, Low-Density Parity Check, Thermal throttling, S.M.A.R.T. |
| Width: | 80 mm |
| Depth: | 22 mm |
| Height: | 3.58 mm |
| Weight: | 8 g |
| Performance | |
| Drive Writes Per Day (DWPD): | 0.2 |
| SSD Endurance: | 100 TB |
| Internal Data Rate: | 1600 MBps (read) / 800 MBps (write) |
| 4KB Random Read: | 110000 IOPS |
| 4KB Random Write: | 95000 IOPS |
| Reliability | |
| MTBF: | 1,000,000 hours |
| Expansion & Connectivity | |
| Interfaces: | 1 x PCI Express 3.0 x4 (NVMe) - M.2 Card |
| Compatible Bay: | M.2 2280 |
| Software & System Requirements | |
| OS Required: | Microsoft Windows 7 / 8 / 10, Linux Kernel 2.6.31 or later |
| Miscellaneous | |
| Compliant Standards: | FCC, BSMI |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 70 °C |
Transcend's PCIe SSD 110S utilizes the PCI Express Gen3 x4 interface supported by the latest NVMe standard, to unleash next-generation performance. The PCIe SSD 110S aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing heavy workloads with no system lags or slowdowns of any kind. Powered by 3D NAND flash memory, the PCIe SSD 110S gives you not only fast transfer speeds but unmatched reliability.
- Compelling performance for high-end applications
- Understanding the PCIe interface
- Understanding the NVMe standard
- 3D expansion to break through limits
- Better endurance, higher reliability
