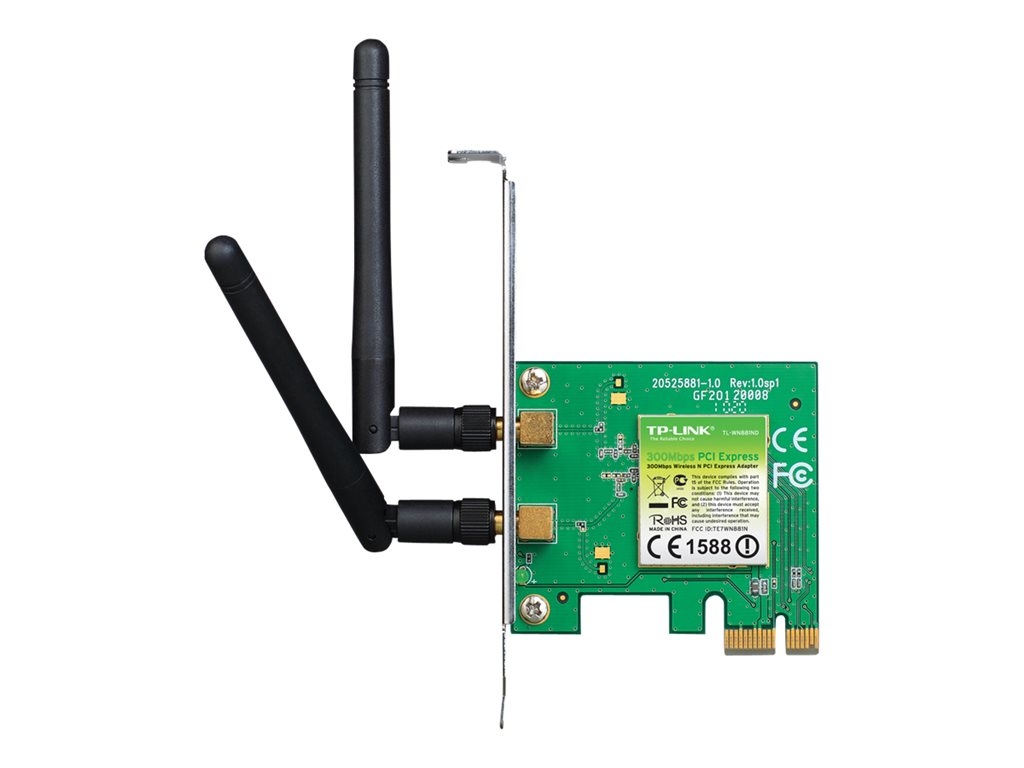

TP-Link TL-WN881ND - network adapter - PCIe 2.0
SKU TL-WN881ND
Product Description: | TP-Link TL-WN881ND - network adapter - PCIe 2.0 |
Device Type: | Network adapter |
Form Factor: | Plug-in card |
Interface (Bus) Type: | PCI Express 2.0 x1 |
Dimensions (WxDxH): | 2.2 cm x 7.9 cm x 12.1 cm |
Data Link Protocol: | 802.11b/g/n |
Data Transfer Rate: | 300 Mbps |
- Specifications
- Description
General | |
Device Type: | Network adapter |
Form Factor: | Plug-in card |
Interface (Bus) Type: | PCI Express 2.0 x1 |
Networking | |
Connectivity Technology: | Wireless |
Data Link Protocol: | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Spread Spectrum Method: | OFDM |
Data Transfer Rate: | 300 Mbps |
Line Coding Format: | DBPSK, DQPSK, CCK, 64 QAM, 16 QAM, OFDM |
Frequency Band: | 2.4 GHz |
Features: | Ad-Hoc Mode, WPS, 2T2R MIMO technology |
Compliant Standards: | IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n |
Aerial | |
Antenna: | External detachable |
Antenna Qty: | 2 |
Directivity: | Omni-directional |
Gain Level: | 2 dBi |
Expansion / Connectivity | |
Compatible Slots: | 1 x PCI Express 2.0 x1 |
Miscellaneous | |
Encryption Algorithm: | AES, 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK |
Compliant Standards: | FCC, RoHS |
Software / System Requirements | |
Software Included: | Drivers & Utilities |
OS Required: | Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits) |
Dimensions & Weight | |
Width: | 2.2 cm |
Depth: | 7.9 cm |
Height: | 12.1 cm |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 10 - 90% (non-condensing) |
Wireless N PCI Express 2.0 adapter TL-WN881ND allows you to connect a desktop computer to a wireless network and access high-speed Internet connection. Comply with IEEE 802.11n, they provide wireless speed up to 300 Mbps, which is beneficial for the online gaming or even HD video streaming.
MIMO (multiple input, multiple output antennas) technology, it shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhanced the wireless performance.
As for the security of Wi-Fi connection, WEP encryption has been no longer the strongest and safest guards for outside intrusions. TL-WN881ND provides WPA/WPA2 encryptions that are created by the Wi-Fi alliance industry group, promoting interpretabilities and security for WLAN, which could effectively and efficiently protect the wireless network.
MIMO (multiple input, multiple output antennas) technology, it shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhanced the wireless performance.
As for the security of Wi-Fi connection, WEP encryption has been no longer the strongest and safest guards for outside intrusions. TL-WN881ND provides WPA/WPA2 encryptions that are created by the Wi-Fi alliance industry group, promoting interpretabilities and security for WLAN, which could effectively and efficiently protect the wireless network.
- Wireless N speed up to 300 Mbps makes it ideal for video streaming, online gaming and Internet calls
- 2T2R MIMO delivers greater throughput at range versus conventional 1T1R
- Supports ad-hoc and infrastructure mode
- Seamlessly compatible with 802.11 n/b/g products
- Easily setup a highly secured wireless link with WPS (Wi-Fi Protected Setup)
The technical details come from 3rd party. edgemo is not responsible for any errors.
