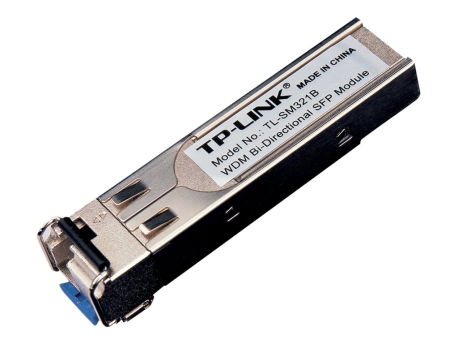

Printers & POSTP-Link TL-SM321B - SFP (mini-GBIC) transceiver module - 1GbE
SKU TL-SM321B
| Product Description: | TP-Link TL-SM321B - SFP (mini-GBIC) transceiver module - 1GbE |
| Device Type: | SFP (mini-GBIC) transceiver module - LC/UPC single-mode |
| Form Factor: | Plug-in module |
| Cabling Type: | 1000Base-BX |
| Data Transfer Rate: | 1.25 Gbps |
| Optical Wave Length: | 1310 (TX) / 1550 (RX) nm |
| Data Link Protocol: | 1GbE |
- Specifications
- Description
| General | |
| Device Type: | SFP (mini-GBIC) transceiver module |
| Form Factor: | Plug-in module |
| Networking | |
| Connectivity Technology: | Wired |
| Cabling Type: | 1000Base-BX |
| Data Link Protocol: | 1GbE |
| Data Transfer Rate: | 1.25 Gbps |
| Optical Wave Length: | 1310 (TX) / 1550 (RX) nm |
| Max Transfer Distance: | 10 km |
| Compliant Standards: | IEEE 802.3z |
| Expansion / Connectivity | |
| Interfaces: | 1 x Ethernet 1000Base-BX - LC/UPC single-mode |
| Compatible Slots: | 1 x SFP (mini-GBIC) |
| Miscellaneous | |
| Compliant Standards: | Plug and Play, FCC |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 70 °C |
| Humidity Range Operating: | 10 - 90% |
| Compatibility Information | |
| Designed For: | P/N: TL-SG3452XP V1 |
TP-Link's TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km with TP-Link's routers, switches, media converters to provide high speed and stability.
- Supports WDM Bi-Directional technology, using a single strand of fiber
- Internal +3.3V power supply
- Plug-and-Play
The technical details come from 3rd party. edgemo is not responsible for any errors.
