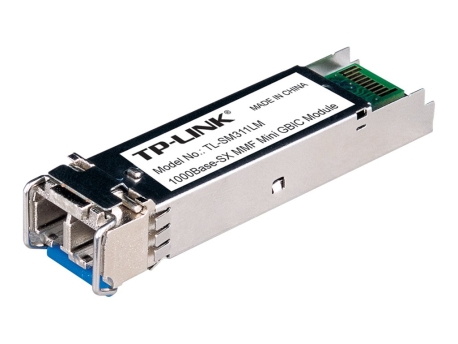

TP-Link TL-SM311LM - SFP (mini-GBIC) transceiver module - 1GbE

SKU TL-SM311LM
Product Description:TP-Link TL-SM311LM - SFP (mini-GBIC) transceiver module - 1GbE
Device Type:SFP (mini-GBIC) transceiver module - LC multi-mode
Form Factor:Plug-in module
Cabling Type:1000Base-SX
Data Transfer Rate:1 Gbps
Optical Wave Length:850 nm
Data Link Protocol:1GbE
In Stock(11)
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:SFP (mini-GBIC) transceiver module
Form Factor:Plug-in module
Networking
Connectivity Technology:Wired
Cabling Type:1000Base-SX
Data Link Protocol:1GbE
Data Transfer Rate:1 Gbps
Optical Wave Length:850 nm
Max Transfer Distance:550 m
Status Indicators:Status
Features:Full duplex capability
Compliant Standards:IEEE 802.3z
Expansion / Connectivity
Interfaces:1 x Ethernet 1000Base-SX - LC multi-mode x 2
Compatible Slots:1 x SFP (mini-GBIC)
Miscellaneous
Compliant Standards:Plug and Play, FCC
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:70 °C
Humidity Range Operating:10 - 90%
Compatibility Information
Designed For:P/N: TL-SG3452XP V1
vis mere
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance, attached to the managed/web smart switches. They can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
  • Support full-duplex
  • Plug-and-Play
  • LED indicators show the operation state of the fiber module
  • Supports Pull-or-Plug with power on switches
  • Internal power from switches




The technical details come from 3rd party. edgemo is not responsible for any errors.
