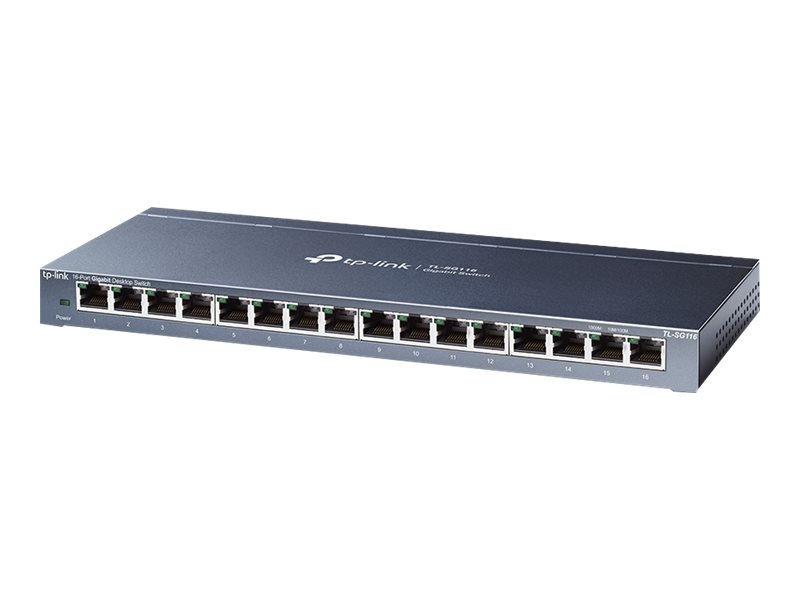

Printers & POSTP-Link TL-SG116 - switch - 16 ports
SKU TL-SG116
| Product Description: | TP-Link TL-SG116 - switch - 16 ports |
| Device Type: | Switch - 16 ports |
| Subtype: | Gigabit Ethernet |
| Ports: | 16 x 10/100/1000 |
| Performance: | Packet forwarding rate: 23.8 Mpps |
| MAC Address Table Size: | 8K entries |
| Jumbo Frame Support: | 10KB |
- Specifications
- Description
| General | |
| Device Type: | Switch - 16 ports |
| Enclosure Type: | Desktop |
| Subtype: | Gigabit Ethernet |
| Ports: | 16 x 10/100/1000 |
| Performance: | Packet forwarding rate: 23.8 Mpps |
| MAC Address Table Size: | 8K entries |
| Jumbo Frame Support: | 10KB |
| Features: | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, fanless |
| Compliant Standards: | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x |
| Expansion / Connectivity | |
| Interfaces: | 16 x 1000Base-T RJ-45 |
| Power | |
| Power Device: | External power adapter |
| Power Consumption Operational: | 10 Watt |
| Miscellaneous | |
| Included Accessories: | Rubber feet |
| Compliant Standards: | FCC, RoHS |
| Dimensions & Weight | |
| Width: | 28.6 cm |
| Depth: | 11.17 cm |
| Height: | 2.54 cm |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 5 - 90% (non-condensing) |
The TP-Link 16-port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.
- 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, with no configuration needed
The technical details come from 3rd party. edgemo is not responsible for any errors.
