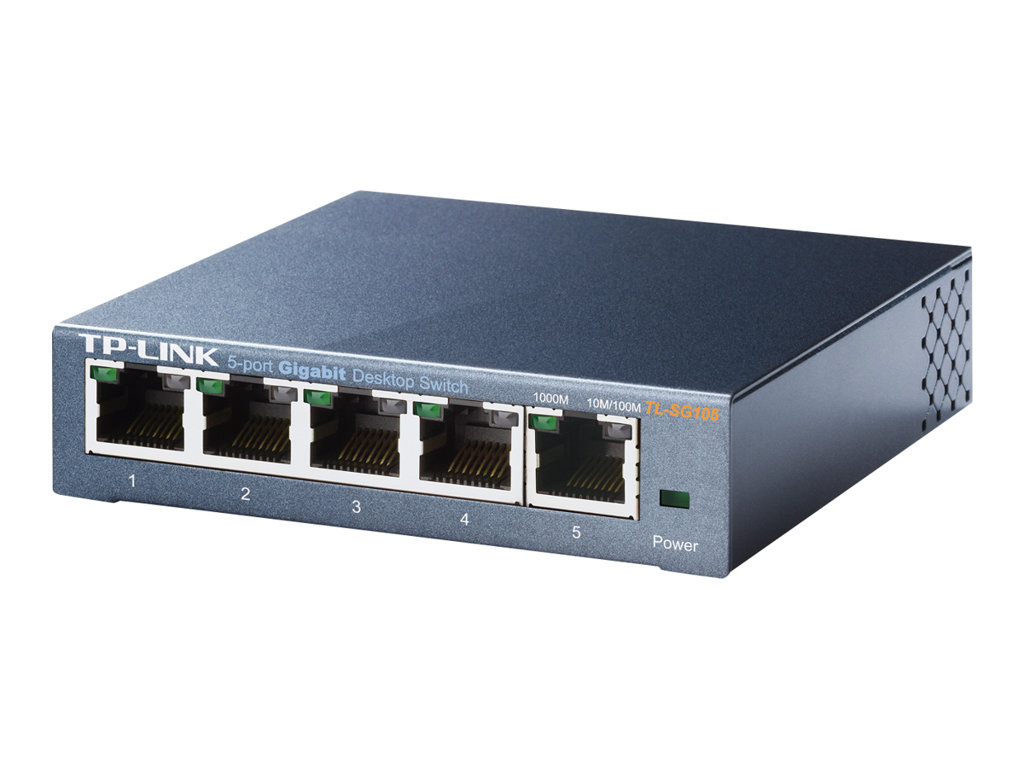

TP-Link TL-SG105 5-Port Metal Gigabit Switch - switch - 5 ports - unmanaged

SKU TL-SG105
Product Description:TP-Link TL-SG105 5-Port Metal Gigabit Switch - switch - 5 ports - unmanaged
Device Type:Switch - 5 ports - unmanaged
Subtype:Gigabit Ethernet
Ports:5 x 10/100/1000
Jumbo Frame Support:9KB
Features:Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, wall mountable, QoS, fanless
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p
In Stock(48)
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Switch - 5 ports - unmanaged
Enclosure Type:Desktop
Subtype:Gigabit Ethernet
Ports:5 x 10/100/1000
Jumbo Frame Support:9KB
Features:Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, wall mountable, QoS, fanless
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p
Status Indicators:Port transmission speed, power, link/activity
Expansion / Connectivity
Interfaces:5 x 1000Base-T RJ-45
Power
Power Device:External power adapter
Voltage Required:AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards:FCC, RoHS
Software / System Requirements
OS Required:UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/ME/XP/Vista/7
Dimensions & Weight
Width:9.98 cm
Depth:9.8 cm
Height:2.5 cm
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 90% (non-condensing)
Min Storage Temperature:-40 °C
Max Storage Temperature:70 °C
Humidity Range Storage:5 - 90% (non-condensing)
vis mere
The TP-Link 5-port 10/100/1000 Mbps desktop switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.
  • Energy-efficient technology saves power up to 65%
  • Supports IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode
  • Steel design, desktop or wall-mounting design
  • Supports QoS (IEEE 802.1p) and IGMP snooping function
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 9K Jumbo frame improves performance of large data transfers
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10 Mbps, 100 Mbps and 1000 Mbps hardware
  • Fanless design ensures quiet operation
  • Plug and Play design simplifies installation




The technical details come from 3rd party. edgemo is not responsible for any errors.
