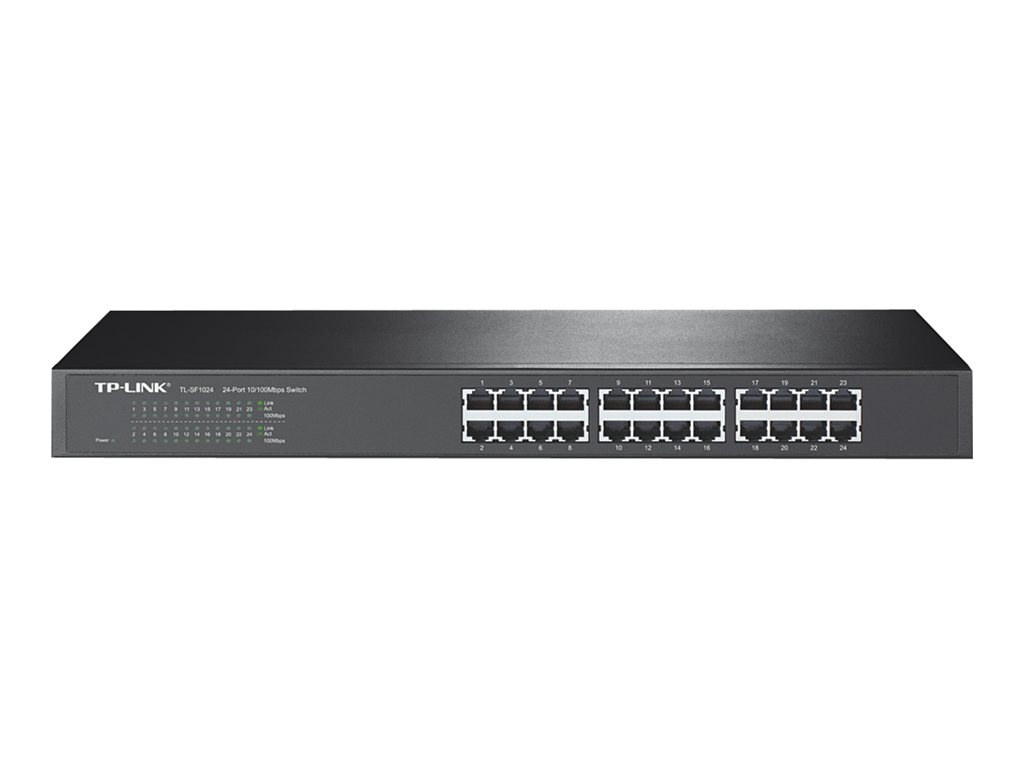

TP-Link TL-SF1024 - switch - 24 ports

SKU TL-SF1024
Product Description:TP-Link TL-SF1024 - switch - 24 ports
Device Type:Switch - 24 ports
Enclosure Type:1U
Subtype:Fast Ethernet
Ports:24 x 10/100
Features:Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3x
07-01-2025
  • Specifications
  • Description
General
Device Type:Switch - 24 ports
Enclosure Type:Desktop 1U
Subtype:Fast Ethernet
Ports:24 x 10/100
Features:Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Status Indicators:Power, 100M device connected, link/activity
Expansion / Connectivity
Interfaces:24 x 100Base-TX RJ-45
Power
Power Device:Internal power supply
Voltage Required:AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards:Plug and Play, FCC
Dimensions & Weight
Width:44 cm
Depth:18 cm
Height:4.4 cm
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 90%
vis mere
TL-SF1024 24-port 10/100Mbps Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. Rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for less than 24 users environment. The plug-and-play and auto-negotiation capabilities allow the Switch to auto-detect its link partner (Ethernet adapter, for example) with the best speed. Each port provides full bandwidth (Maximum with 200Mbps in full duplex mode) without a traditional hub's collision phenomenon downgrading the performance. All ports can be the uplink (cascade) port, which is provided to link to another Switch for more ports expansion. Easy read LED indicators are supported for cable installation and normal operation diagnostics. The Switch can be used on desktop and rack-mount.




The technical details come from 3rd party. edgemo is not responsible for any errors.
