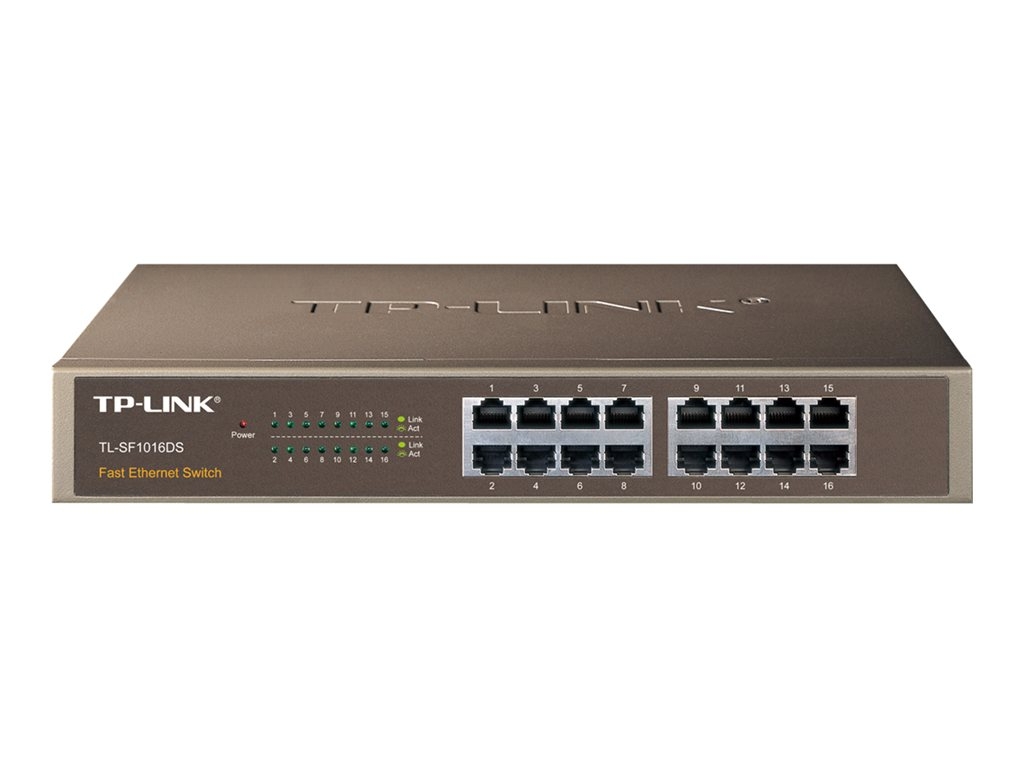

TP-Link TL-SF1016DS - switch - 16 ports - rack-mountable

SKU TL-SF1016DS
Product Description:TP-Link TL-SF1016DS - switch - 16 ports - rack-mountable
Device Type:Switch - 16 ports
Enclosure Type:Rack-mountable
Subtype:Fast Ethernet
Ports:16 x 10/100
MAC Address Table Size:8K entries
Features:Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), packet filtering, store and forward
01-11-2024
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Switch - 16 ports
Enclosure Type:Desktop, rack-mountable
Subtype:Fast Ethernet
Ports:16 x 10/100
MAC Address Table Size:8K entries
Features:Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), packet filtering, store and forward
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Status Indicators:Power, link/activity
Expansion / Connectivity
Interfaces:16 x 100Base-TX RJ-45
Power
Voltage Required:AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards:Plug and Play, FCC, RoHS
Dimensions & Weight
Width:29.4 cm
Depth:18 cm
Height:4.4 cm
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 90% (non-condensing)
Min Storage Temperature:-40 °C
Max Storage Temperature:70 °C
Humidity Range Storage:5 - 90% (non-condensing)
vis mere
The TL-SF1016DS Fast Ethernet switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25% of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
  • Energy-efficient technology saves power up to 25%
  • Supports IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 3.2 Gbps switching capacity
  • Store and forward switching scheme
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware
  • Desktop and rack-mountable design
  • Plug and Play design simplifies installation
  • Fanless design to make sure it works quietly without disturbing your family




The technical details come from 3rd party. edgemo is not responsible for any errors.
