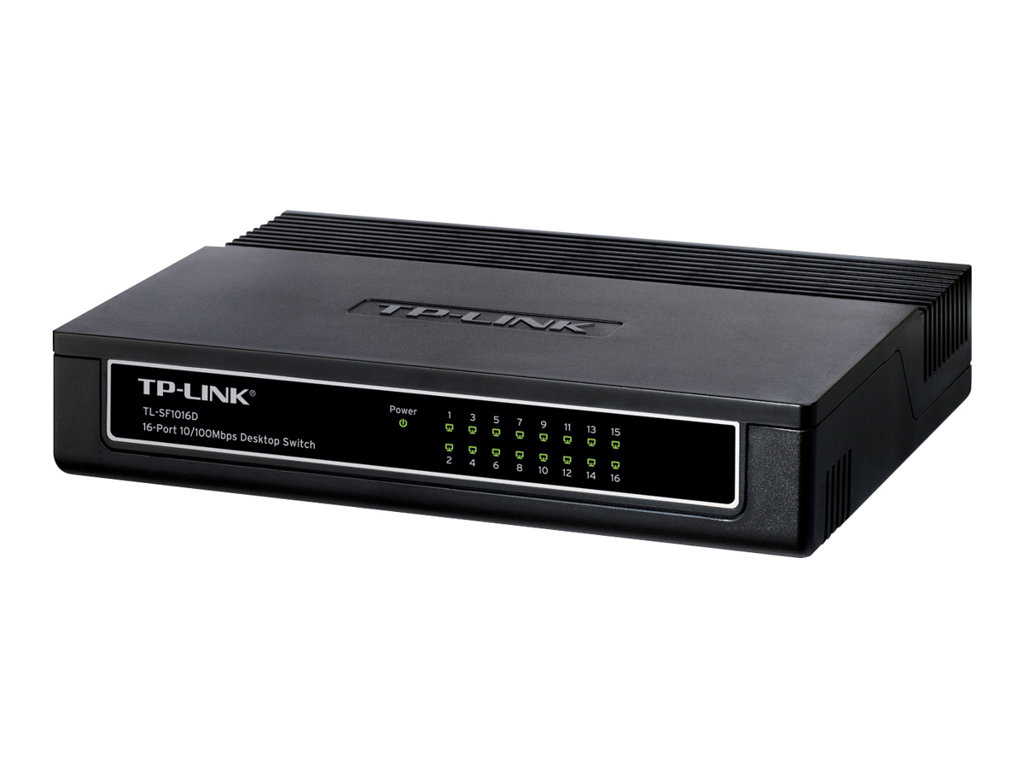

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch - switch - 16 ports

SKU TL-SF1016D
Product Description:TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch - switch - 16 ports
Device Type:Switch - 16 ports
Subtype:Fast Ethernet
Ports:16 x 10/100
MAC Address Table Size:1K entries
Features:Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3x
29-05-2024
  • Specifications
  • Description
General
Device Type:Switch - 16 ports
Enclosure Type:Desktop
Subtype:Fast Ethernet
Ports:16 x 10/100
MAC Address Table Size:1K entries
Features:Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Status Indicators:Power, link/activity
Expansion / Connectivity
Interfaces:16 x 100Base-TX RJ-45
Power
Power Device:External power adapter
Miscellaneous
Compliant Standards:FCC
Dimensions & Weight
Width:20 cm
Depth:14.2 cm
Height:4 cm
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 90%
vis mere
The TL-SF1016D Fast Ethernet switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply Plug and Play. Moreover, with the energy-efficient technology, the TL-SF1016D can save up to 70% of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
  • Energy-efficient technology saves power up to 70%
  • Supports IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 3.2 Gbps switching capacity
  • 9K jumbo frame improves performance of large data transfers
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10 Mbps, 100 Mbps hardware
  • Fanless design ensures quiet operation
  • Desktop or wall-mounting design
  • Plug and Play design simplifies installation




The technical details come from 3rd party. edgemo is not responsible for any errors.
