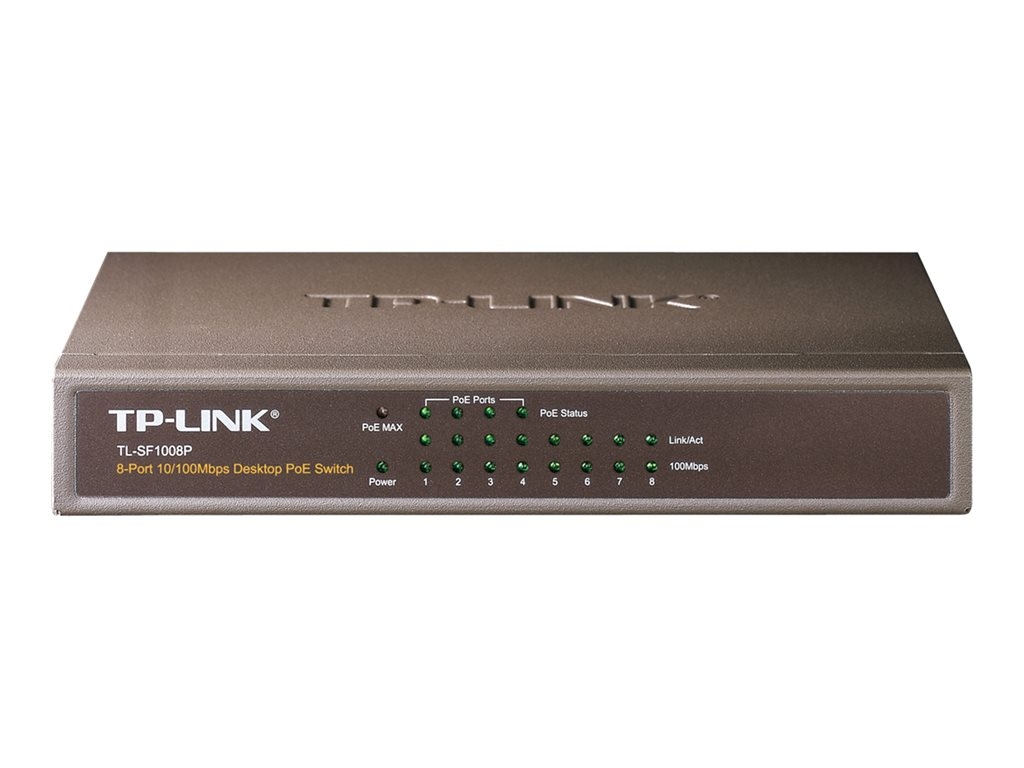

TP-Link TL-SF1008P - switch - 8 ports

SKU TL-SF1008P
Product Description:TP-Link TL-SF1008P - switch - 8 ports
Device Type:Switch - 8 ports
Subtype:Fast Ethernet
Ports:4 x 10/100 (PoE) + 4 x 10/100
Power Over Ethernet (PoE):PoE
MAC Address Table Size:1K entries
Features:Flow control, full duplex capability, power over Ethernet (PoE), auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
In Stock(13)
  • Specifications
  • Description
General
Device Type:Switch - 8 ports
Enclosure Type:Desktop
Subtype:Fast Ethernet
Ports:4 x 10/100 (PoE) + 4 x 10/100
Power Over Ethernet (PoE):PoE
MAC Address Table Size:1K entries
Features:Flow control, full duplex capability, power over Ethernet (PoE), auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x
Status Indicators:Port transmission speed, power, link/activity
Expansion / Connectivity
Interfaces:4 x 100Base-TX RJ-45 ¦ 4 x 100Base-TX RJ-45 PoE
Power
Power Device:External power adapter
Miscellaneous
Compliant Standards:FCC
Dimensions & Weight
Width:17.1 cm
Depth:9.8 cm
Height:2.7 cm
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 90%
vis mere
The TL-SF1008P 8-port 10/100M Desktop PoE Switch provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities.
4 of the 8 auto-negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
TL-SF1008P has the priority function which will help protect the system when the system power is overloaded.
TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-link TL-SF1008P 8-port 10/100M Desktop PoE Switch is a great selection for expanding your home or office network.
  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 53W for all PoE ports
  • Supports PoE IEEE802.3af compliant PDs
  • Supports IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode
  • 1K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity and speed
  • External power adapter supply
  • Requires no configuration and installation




The technical details come from 3rd party. edgemo is not responsible for any errors.
