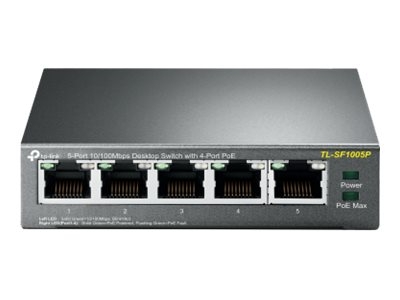

Printers & POSTP-Link TL-SF1005P - switch - 5 ports - unmanaged
SKU TL-SF1005P
| Product Description: | TP-Link TL-SF1005P - switch - 5 ports - unmanaged |
| Device Type: | Switch - 5 ports - unmanaged |
| Subtype: | Fast Ethernet |
| Ports: | 5 x 10/100 (4 PoE) |
| Power Over Ethernet (PoE): | PoE |
| PoE Budget: | 58 W |
| Performance: | Switching capacity: 1 Gbps |
- Specifications
- Description
| General | |
| Device Type: | Switch - 5 ports - unmanaged |
| Enclosure Type: | Desktop |
| Subtype: | Fast Ethernet |
| Ports: | 5 x 10/100 (4 PoE) |
| Power Over Ethernet (PoE): | PoE |
| PoE Budget: | 58 W |
| Performance: | Switching capacity: 1 Gbps |
| MAC Address Table Size: | 2K entries |
| Features: | Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x |
| Status Indicators: | PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces: | 4 x 100Base-TX RJ-45 PoE - 15.4 W ¦ 1 x 100Base-TX RJ-45 |
| Power | |
| Power Device: | External power adapter |
| Miscellaneous | |
| Compliant Standards: | FCC |
| Dimensions & Weight | |
| Width: | 9.98 cm |
| Depth: | 9.8 cm |
| Height: | 2.5 cm |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 5 - 90% (non-condensing) |
TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
- 5 10/100Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 58W for all PoE ports
- Requires no configuration and installation
The technical details come from 3rd party. edgemo is not responsible for any errors.
