Printers & POSTP-Link TL-RP108GE - switch - 8 ports - Managed
SKU TL-RP108GE
| Product Description: | TP-Link TL-RP108GE - switch - 8 ports - Managed |
| Device Type: | Switch - 8 ports - Managed |
| Subtype: | Gigabit Ethernet |
| Ports: | 7 x 10/100/1000 (PoE input) + 1 x 10/100/1000 (PoE output) |
| Power Over Ethernet (PoE): | Reverse PoE |
| Performance: | Switching capacity: 16 Gbps ¦ Packet forwarding rate: 11.9 Mbps |
| Capacity: | Virtual interfaces (VLANs): 32 |
- Specifications
- Description
| General | |
| Device Type: | Switch - 8 ports - Managed |
| Enclosure Type: | Desktop |
| Subtype: | Gigabit Ethernet |
| Ports: | 7 x 10/100/1000 (PoE input) + 1 x 10/100/1000 (PoE output) |
| Power Over Ethernet (PoE): | Reverse PoE |
| Performance: | Switching capacity: 16 Gbps ¦ Packet forwarding rate: 11.9 Mbps |
| Capacity: | Virtual interfaces (VLANs): 32 |
| MAC Address Table Size: | 4K entries |
| Jumbo Frame Support: | 16KB |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3 |
| Features: | Full duplex capability, auto-negotiation, VLAN support, IGMP snooping, port mirroring, store and forward, Quality of Service (QoS), Cable Diagnostics Function, loop prevention, DiffServ Code Point (DSCP) support, Storm Control, rate limit, Static Link Aggregation, VLAN Tagging, DSCP prioritisation |
| Compliant Standards: | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3p, IEEE 802.3q |
| Status Indicators: | Power, link/activity |
| Expansion / Connectivity | |
| Interfaces: | 7 x 1000Base-T RJ-45 PoE input ¦ 1 x 1000Base-T RJ-45 PoE output |
| Power | |
| Power Consumption Operational: | 32.74 Watt |
| Miscellaneous | |
| Included Accessories: | Rubber feet |
| Compliant Standards: | FCC, RoHS |
| Software / System Requirements | |
| OS Required: | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7 |
| Dimensions & Weight | |
| Width: | 15.8 cm |
| Depth: | 9.91 cm |
| Height: | 2.5 cm |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 5 - 90% (non-condensing) |

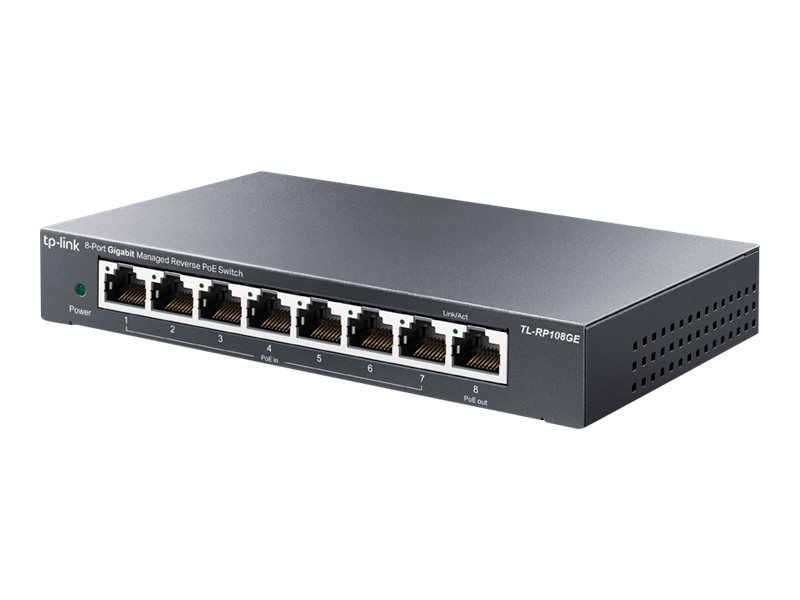

The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets - lowering deployment costs and simplifying installation for PoE-capable devices.
- 7 PoE input and 1 PoE output 10/100/1000 Mbps RJ45 Ports
- 1 DC output port that supports both 5V and 12 V voltage switching
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
