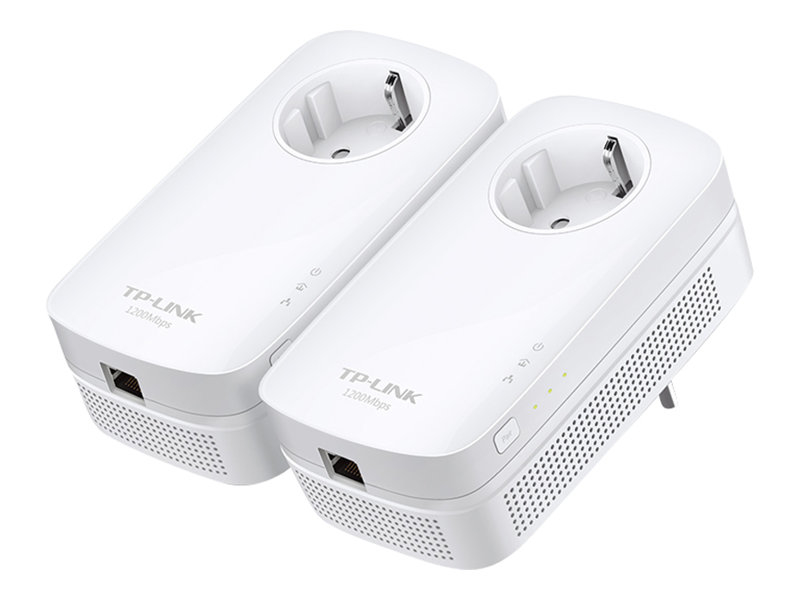

TP-Link TL-PA8010P KIT - Starter Kit - powerline adapter - wall-pluggable
SKU TL-PA8010P KIT
Product Description: | TP-Link TL-PA8010P KIT - Starter Kit - powerline adapter - wall-pluggable |
Device Type: | Powerline adapter |
Enclosure Type: | Wall-pluggable |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0 |
Data Transfer Rate: | 1.2 Gbps |
Features: | 2T2R MIMO technology |
Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, HomePlug AV, HomePlug AV 2.0, IEEE 1901 |
- Specifications
- Description
General | |
Device Type: | Powerline adapter |
Enclosure Type: | Wall-pluggable |
Connectivity Technology: | Wired |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0 |
Data Transfer Rate: | 1.2 Gbps |
Max Range Indoors: | 300 m |
Encryption Algorithm: | 128-bit AES |
Features: | 2T2R MIMO technology |
Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, HomePlug AV, HomePlug AV 2.0, IEEE 1901, Plug and Play, RoHS |
Status Indicators: | Power, link/activity |
Line Properties | |
Line Coding Format: | OFDM |
Expansion / Connectivity | |
Interfaces: | LAN: 1 x HomePlug AV ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
Power | |
Power Device: | Internal power supply |
Voltage Required: | AC 220 V (50 Hz) |
Power Consumption Operational: | 6 Watt |
Miscellaneous | |
Cables Included: | 1 x network cable - 2 m |
Localisation: | United Kingdom, Europe |
Software / System Requirements | |
Software Included: | Drivers & Utilities |
OS Required: | Apple MacOS, Linux, Microsoft Windows Server 2003, Microsoft Windows 2000/XP/Vista/7, Windows 8 |
Dimensions & Weight | |
Width: | 13.1 cm |
Depth: | 7.2 cm |
Height: | 4.2 cm |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 10 - 90% (non-condensing) |
The advanced HomePlug AV2 technology means the TL-PA8010P kit supports MIMO technology with beamforming, so users benefit from ultra fast data transfer speeds. This solution is perfect for bandwidth-demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers. The MIMO technology with Beamforming maximizes the performance on the independent streams, which improves coverage throughout the home, particularly for previously hard to reach outlets. The MIMO technology also means the TL-PA8010P kit can use the 3 wires, including the live, neutral and earth to create multiple data paths, meaning that you benefit from faster data throughput and more stable connections. TL-PA8010P is a powerline adapter with sophisticated power-saving mode, which automatically switches from its regular working mode to power-saving mode, greatly reducing energy consumption.
- High-speed data transfer rates to support all your online needs
- MIMO technology with beamforming for larger range, higher transmission capacity and more stable connections
- Gigabit port provides secure wired networks for desktops, smart TVs or games consoles
- Integrated power socket ensures no power outlet goes to waste
- Plug-and-Play, no configuration required
- Power-saving mode automatically reduces power consumption
