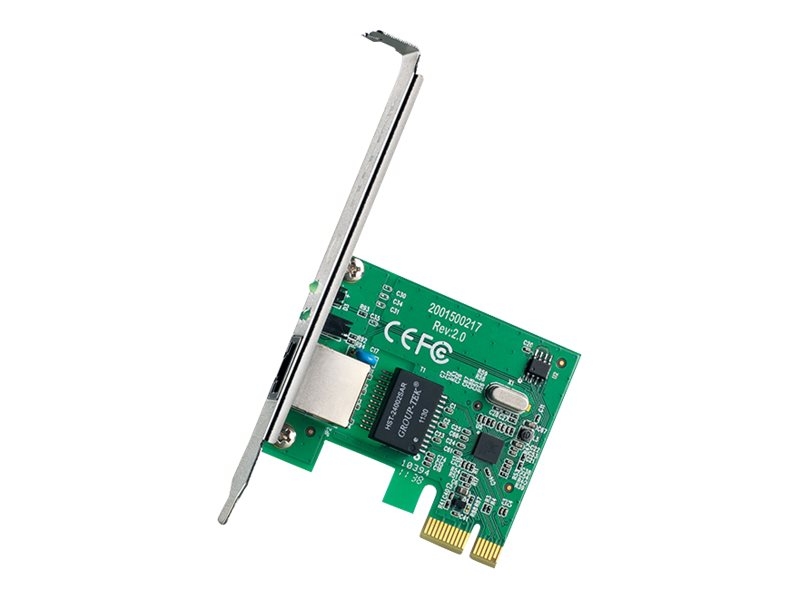

Printers & POSTP-Link TG-3468 - network adapter - PCIe - Gigabit Ethernet
SKU TG-3468
| Product Description: | TP-Link TG-3468 - network adapter - PCIe - Gigabit Ethernet |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI Express x1 |
| PCI Specification Revision: | PCIe 1.0a |
| Ports: | Gigabit Ethernet |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
- Specifications
- Description
| General | |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI Express x1 |
| PCI Specification Revision: | PCIe 1.0a |
| Networking | |
| Ports: | Gigabit Ethernet |
| Connectivity Technology: | Wired |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Network / Transport Protocol: | TCP/IP, CSMA/CD |
| Status Indicators: | Port duplex mode, link/activity |
| Features: | Flow control, auto-negotiation, WOL, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x |
| Expansion / Connectivity | |
| Interfaces: | 1 x 1000Base-T - RJ-45 |
| Compatible Slots: | 1 x PCI Express x1 |
| Miscellaneous | |
| Compliant Standards: | FCC |
| Software / System Requirements | |
| OS Required: | Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - parts and labour - 2 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 10 - 90% |
TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.
The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet adapter which is a good selection to upgrade your network.
The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet adapter which is a good selection to upgrade your network.
- Wake-on-LAN supporting
- Auto-negotiation and auto MDI/MDIX
- Supports IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode
- Supports IEEE 802.1p layer 2 priority encoding and IEEE802.1q VLAN tagging
- Supports power down/link down power saving
The technical details come from 3rd party. edgemo is not responsible for any errors.
