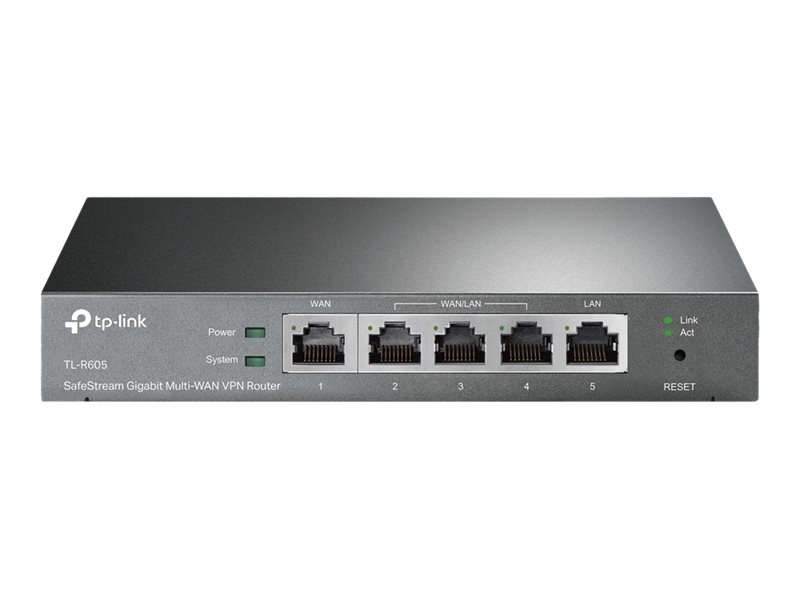

Printers & POSTP-Link SafeStream TL-R605 - router - desktop
SKU TL-R605
| Product Description: | TP-Link SafeStream TL-R605 - router - desktop |
| Device Type: | Router - 4-port switch (integrated) |
| Enclosure Type: | Desktop |
| WAN Ports Qty: | 1 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance: | VPN throughput (IPSec): 41.5 Mbps |
| Capacity: | IPSec VPN tunnels: 20 ¦ PPTP VPN tunnels: 16 ¦ L2TP VPN tunnels: 16 ¦ Concurrent sessions: 25000 |
- Specifications
- Description
| General | |
| Device Type: | Router - 4-port switch (integrated) |
| Enclosure Type: | Desktop |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance: | VPN throughput (IPSec): 41.5 Mbps |
| Capacity: | IPSec VPN tunnels: 20 ¦ PPTP VPN tunnels: 16 ¦ L2TP VPN tunnels: 16 ¦ Concurrent sessions: 25000 |
| Network / Transport Protocol: | TCP/IP, PPTP, L2TP, NTP, ICMP/IP, IPSec, PPPoE, FTP, DHCP, DNS, SIPS, HTTP, HTTPs |
| Routing Protocol: | IGMPv2, static IP routing, IGMPv3 |
| Remote Management Protocol: | SNMP |
| Encryption Algorithm: | DES, Triple DES, MD5, IKE, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Features: | NAT support, Stateful Packet Inspection (SPI), VPN passthrough, IP address filtering, firmware upgradable, LAN-to-LAN bridging, Access Control List (ACL) support, Dead Peer Detection (DPD), virtual server support, DHCP server, reset button, bandwidth control, port triggering, Stateful Packet Inspection Firewall (SPIF), IP-MAC binding, DHCP client, Diagnostic Function, Ping of Death, IGMP proxy, Captive Portal, DHCP reservation, system log, ARP inspection, port filtering, Perfect Forward Secrecy (PFS), Zero-touch provisioning (ZTP), Denial of Service (DoS) protection, DMZ support, DynDNS, schedule reboot |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, UPnP, FCC, RoHS |
| RAM: | 128 MB |
| Flash Memory: | 16 MB |
| Status Indicators: | Power, system, WAN, LAN |
| IP Telephony | |
| VoIP Protocols: | H.323 |
| Expansion / Connectivity | |
| Interfaces: | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Power | |
| Power Device: | External power adapter |
| Voltage Required: | DC 9 V |
| Electric Current Required: | 0.85 A |
| Software / System Requirements | |
| OS Required: | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/ME/XP/Vista/7 |
| Dimensions & Weight | |
| Width: | 15.8 cm |
| Depth: | 10.1 cm |
| Height: | 2.5 cm |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
TL-R605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 20x LAN-to-LAN IPsec, 16x OpenVPN, 16x L2TP, and 16x PPTP VPN connections. One-click auto IPSec VPN greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.
- Integrated into Omada SDN
- Centralized management
- Five Gigabit ports
- Up to 4 WAN ports
- Highly secure VPN
- Abundant security features
