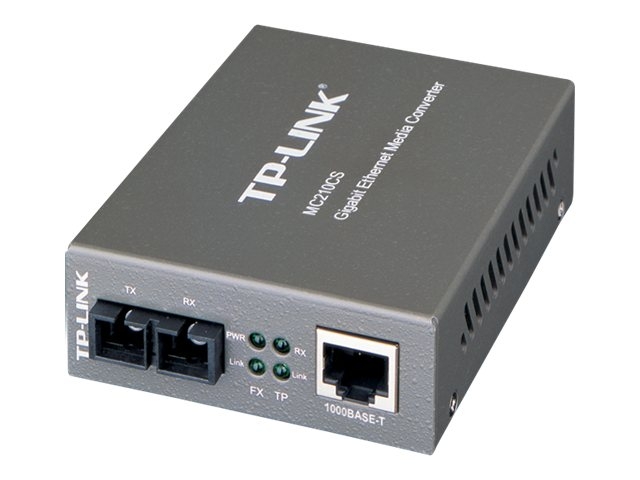

TP-Link MC210CS - fibre media converter - 1GbE

SKU MC210CS
Product Description:TP-Link MC210CS - fibre media converter - 1GbE
Device Type:Fibre media converter - RJ-45 / SC single-mode
Form Factor:External
Cabling Type:1000Base-FX, 1000Base-T
Data Transfer Rate:1 Gbps
Optical Wave Length:1310 nm
Data Link Protocol:1GbE
In Stock(14)
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Fibre media converter
Form Factor:External
Networking
Connectivity Technology:Wired
Cabling Type:1000Base-FX, 1000Base-T
Data Link Protocol:1GbE
Data Transfer Rate:1 Gbps
Optical Wave Length:1310 nm
Max Transfer Distance:15 km
Status Indicators:Power, receive, link/activity
Features:Flow control, auto-uplink (auto MDI/MDI-X), full duplex mode
Compliant Standards:IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
Expansion / Connectivity
Interfaces:1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-FX - SC single-mode female x 2
Power
Power Device:External power adapter
Dimensions & Weight
Width:9.5 cm
Depth:7.3 cm
Height:2.7 cm
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 90%
Compatibility Information
Designed For:P/N: TL-MC1400, TL-SG3210XHP-M2 V2.6, TL-SG3452XP V1
vis mere
The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19''system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • Link fault passthrough and far end fault minimize the loss caused by link failure timely
  • Provides switch configuration of force /auto transfer mode for FX port
  • Extends fiber distance up to 15km
  • Supports auto MID/MID-X for TX port
  • Easy-to-view LED indicators provide status to monitor network activity easily
  • External power supply




The technical details come from 3rd party. edgemo is not responsible for any errors.
