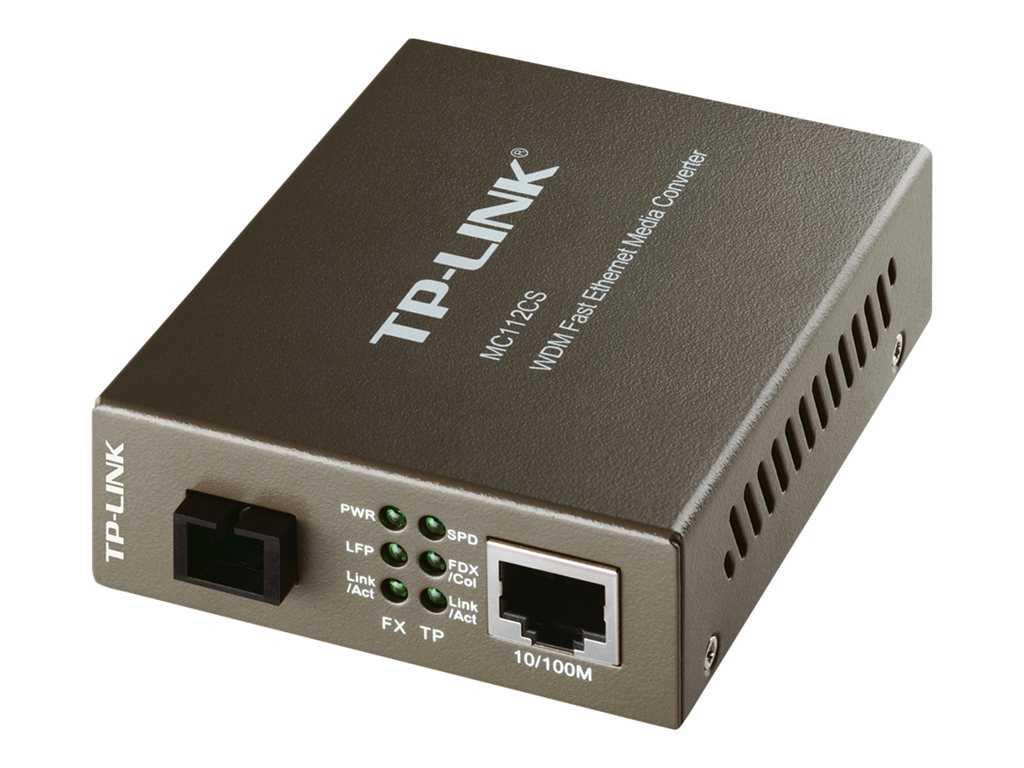

TP-Link MC112CS - fibre media converter - 10Mb LAN, 100Mb LAN

SKU MC112CS
Product Description:TP-Link MC112CS - fibre media converter - 10Mb LAN, 100Mb LAN
Device Type:Fibre media converter - RJ-45 / SC single-mode
Form Factor:External
Cabling Type:10Base-T, 100Base-FX, 100Base-TX
Data Transfer Rate:100 Mbps
Optical Wave Length:1310 (TX) / 1550 (RX) nm
Data Link Protocol:10Mb LAN, 100Mb LAN
01-04-2024
  • Specifications
  • Description
General
Device Type:Fibre media converter
Form Factor:External
Networking
Connectivity Technology:Wired
Cabling Type:10Base-T, 100Base-FX, 100Base-TX
Data Link Protocol:10Mb LAN, 100Mb LAN
Data Transfer Rate:100 Mbps
Optical Wave Length:1310 (TX) / 1550 (RX) nm
Max Transfer Distance:20 km
Status Indicators:Collision status, port duplex mode, power, link/activity
Features:Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Expansion / Connectivity
Interfaces:1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC single-mode
Miscellaneous
Compliant Standards:FCC
Power
Power Device:External power adapter
Dimensions & Weight
Width:9.5 cm
Depth:7.3 cm
Height:2.7 cm
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 90%
vis mere
The MC112CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-LINK's media converter MC111CS is just one of the examples to cooperate with MC112CS.
Other features of this module include the ability to be used as a stand alone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
  • Auto negotiation of 10/100Mbps and auto MID/MID-X for TX port
  • Provide switch configuration of Half-Duplex/Full-Duplex transfer mode for FX port
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extend fiber distance up to 20-60km
  • Easy-to-view LED indicators provide status to monitor network activity easily
  • External power supply




The technical details come from 3rd party. edgemo is not responsible for any errors.
