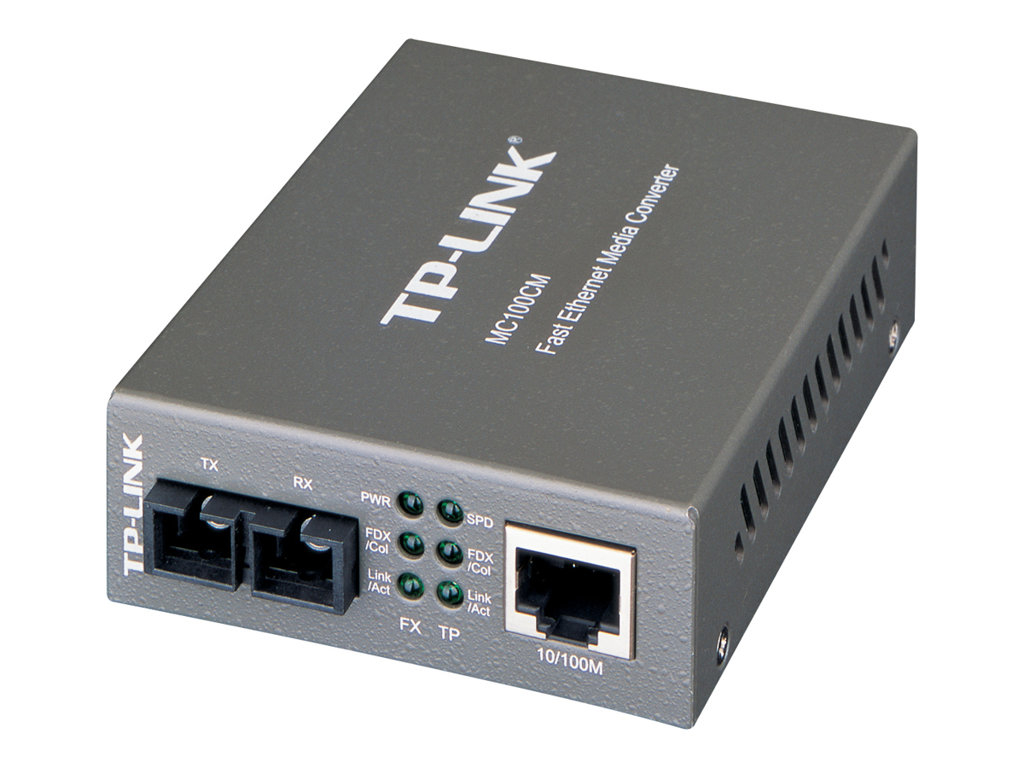

TP-Link MC100CM - fibre media converter - 10Mb LAN, 100Mb LAN

SKU MC100CM
Product Description:TP-Link MC100CM - fibre media converter - 10Mb LAN, 100Mb LAN
Device Type:Fibre media converter - RJ-45 / SC multi-mode
Form Factor:External
Cabling Type:10Base-T, 100Base-FX, 100Base-TX
Data Transfer Rate:100 Mbps
Optical Wave Length:1310 nm
Data Link Protocol:10Mb LAN, 100Mb LAN
08-04-2024
  • Specifications
  • Description
General
Device Type:Fibre media converter
Form Factor:External
Networking
Connectivity Technology:Wired
Cabling Type:10Base-T, 100Base-FX, 100Base-TX
Data Link Protocol:10Mb LAN, 100Mb LAN
Data Transfer Rate:100 Mbps
Optical Wave Length:1310 nm
Max Transfer Distance:2 km
Status Indicators:Collision status, port duplex mode, power, link/activity
Features:Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Expansion / Connectivity
Interfaces:1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC multi-mode
Miscellaneous
Compliant Standards:FCC
Power
Power Device:External power adapter
Dimensions & Weight
Width:9.5 cm
Depth:7.3 cm
Height:2.7 cm
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 90%
vis mere
The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required)or with TP-LINK's 19''system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.
  • Auto negotiation of 10/100Mbps and auto MID/MID-X for TX port
  • Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Extend fiber distance up to 2km
  • Easy-to-view LED indicators provide status to monitor network activity easily
  • External power supply




The technical details come from 3rd party. edgemo is not responsible for any errors.
