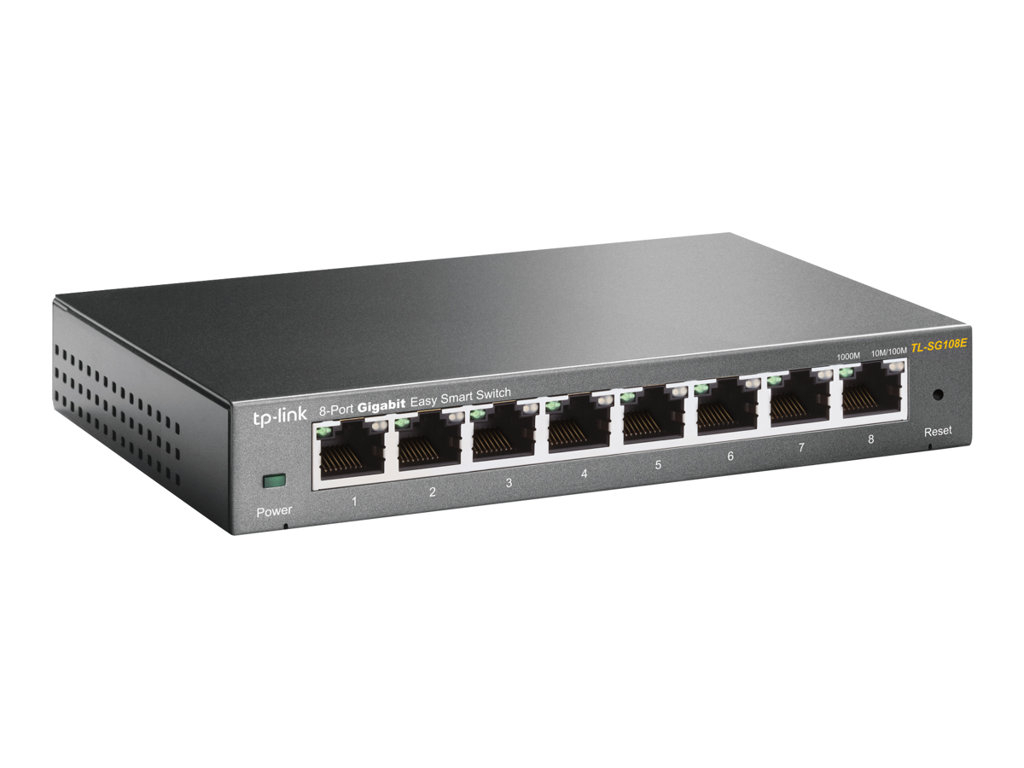

TP-Link JetStream TL-SG108E Easy Smart Switch - switch - 8 ports - Managed
SKU TL-SG108E
Product Description: | TP-Link JetStream TL-SG108E Easy Smart Switch - switch - 8 ports - Managed |
Device Type: | Switch - 8 ports - Managed |
Subtype: | Gigabit Ethernet |
Ports: | 8 x 10/100/1000 |
Performance: | Switching capacity: 16 Gbps ¦ Forwarding performance: 11.9 Mpps |
Capacity: | Virtual interfaces (VLANs): 32 |
MAC Address Table Size: | 8K entries |
- Specifications
- Description
General | |
Device Type: | Switch - 8 ports - Managed |
Enclosure Type: | Desktop |
Subtype: | Gigabit Ethernet |
Ports: | 8 x 10/100/1000 |
Performance: | Switching capacity: 16 Gbps ¦ Forwarding performance: 11.9 Mpps |
Capacity: | Virtual interfaces (VLANs): 32 |
MAC Address Table Size: | 8K entries |
Jumbo Frame Support: | 16KB |
Features: | Auto-negotiation, auto-uplink (auto MDI/MDI-X), flow control, QoS, fanless, store and forward, port mirroring, loop prevention, Cable Diagnostics Function, IGMP snooping, link aggregation trunking |
Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x |
Status Indicators: | Power, link/activity, port transmission speed |
Expansion / Connectivity | |
Interfaces: | 8 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 |
Power | |
Power Device: | Power adapter - external internal power supply |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Miscellaneous | |
Compliant Standards: | FCC, RoHS |
Software / System Requirements | |
Software Included: | Drivers & Utilities |
OS Required: | Apple MacOS, Linux, Microsoft Windows 98SE/2000/NT/ME/XP/Vista/7, Novell NetWare, UNIX |
Dimensions & Weight | |
Width: | 15.8 cm |
Depth: | 10.1 cm |
Height: | 2.5 cm |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 10 - 90% (non-condensing) |
Min Storage Temperature: | -40 °C |
Max Storage Temperature: | 70 °C |
Humidity Range Storage: | 5 - 90% (non-condensing) |
The TL-SG108E 8-port gigabit easy smart switch is an ideal upgrade from an unmanaged switch, designed for small and medium business networks that require simple network management. Network administrators can effectively monitor traffic via port mirroring, loop prevention and cable diagnostics features. To optimize traffic on your business network, TL-SG108E offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG108E can save up to 80% of power consumption, making it an eco-friendly solution for your business network.
- 8 10/100/1000 Mbps ports provide instant large file transfers
- Innovative energy-efficient technology reduces power consumption by up to 80%
- IEEE 802.3x flow control provides reliable data transfers
- 16K jumbo frame improves performance of large data transfers
- Effective network monitoring via port mirroring, loop prevention and cable diagnostics
- Port and tag-based QoS enable smooth latency-sensitive traffic
- Abundant VLAN features improve network security via traffic segmentation
- IGMP snooping optimizes multicast applications
- Centrally manage all easy smart switches with easy smart configuration utility
The technical details come from 3rd party. edgemo is not responsible for any errors.
