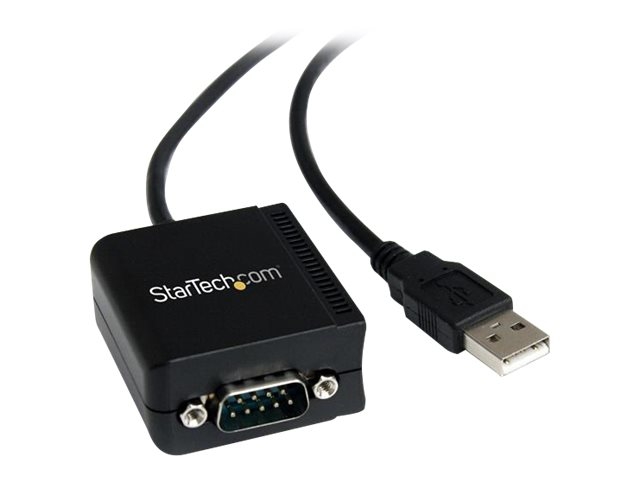

StarTech.com USB to Serial Adapter - 1 port - USB Powered - FTDI USB UART Chip - DB9 (9-pin) - USB to RS232 Adapter (ICUSB2321F) - serial adapter - USB - RS-232
SKU ICUSB2321F
Product Description: | StarTech.com USB to Serial Adapter - 1 port - USB Powered - FTDI USB UART Chip - DB9 (9-pin) - USB to RS232 Adapter (ICUSB2321F) - serial adapter - USB - RS-232 |
Device Type: | Serial adapter |
Form Factor: | External |
Interface (Bus) Type: | USB |
Ports: | RS-232 |
Dimensions (WxDxH): | 4.2 cm x 4.5 cm x 2.2 cm |
Weight: | 200 g |
- Specifications
- Description
General | |
Device Type: | Serial adapter |
Form Factor: | External |
Interface (Bus) Type: | USB |
Networking | |
Ports: | RS-232 |
Connectivity Technology: | Wired |
Data Link Protocol: | RS-232 |
Features: | USB powered |
Expansion / Connectivity | |
Interfaces: | 1 x RS-232 - 9 pin D-Sub (DB-9) |
Connections: | 1 x USB - 4 pin USB Type A |
Miscellaneous | |
Cables Included: | 1 x USB cable (integrated) - 1.8 cm |
Compliant Standards: | FCC, RoHS |
Colour: | Black |
Software / System Requirements | |
OS Required: | Microsoft Windows CE 4.2, Microsoft Windows CE 5.0, Microsoft Windows CE 6.0, Microsoft Windows XP Embedded, Microsoft Windows 98 Second Edition, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0, Linux Kernel 3.0 or later, Linux LTS versions only |
Dimensions & Weight | |
Width: | 4.2 cm |
Depth: | 4.5 cm |
Height: | 2.2 cm |
Weight: | 200 g |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 2 years |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 55 °C |
Humidity Range Operating: | 5 - 95% |
Add an RS232 serial port with COM retention to your laptop or desktop computer through USB. The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices. This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions. Compatibility with a broad list of Operating Systems including Windows, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.
