StarTech.com Thunderbolt 3 Dock, Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort, PCIe M.2 NVMe SSD Enclosure, 85W Power Delivery, SD 4.0 Reader, 10Gbps USB-C, 2 USB-A Hub - 85W Thunderbolt 3 Dock (TB3DK2DPM2) - docking station - Thunderb
SKU TB3DK2DPM2
Product Description: | StarTech.com Thunderbolt 3 Dock, Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort, PCIe M.2 NVMe SSD Enclosure, 85W Power Delivery, SD 4.0 Reader, 10Gbps USB-C, 2 USB-A Hub - 85W Thunderbolt 3 Dock (TB3DK2DPM2) - docking station - Thunderbolt 3 - DP, Thunderbolt - 1GbE - TAA Compliant |
Product Type: | Docking station |
Docking Interface: | Thunderbolt 3 |
Video Interfaces: | DP, Thunderbolt |
Dimensions (WxDxH): | 23.9 cm x 9.5 cm x 2.5 cm |
Weight: | 780 g |
Colour: | Black |
- Specifications
- Description
General | |
Product Type: | Docking station |
Width: | 23.9 cm |
Depth: | 9.5 cm |
Height: | 2.5 cm |
Weight: | 780 g |
Enclosure Colour: | Black |
Localisation: | Australia, Europe, Japan, New Zealand, North Asia, United Kingdom |
Storage | |
Storage Controller: | PCI Express |
Video | |
Max Resolution Details: | 4096 x 2160 - 60 Hz |
Networking | |
Data Link Protocol: | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 (total) / 1 (free) x PCI Express Mini Card (M.2) - M.2 2280 |
Interfaces: | 1 x USB-C - 24 pin USB-C ¦ 1 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 2 x SuperSpeed USB 3.0 with Fast Charging - 9 pin USB Type A ¦ 1 x network - 1000Base-T - RJ-45 ¦ 1 x USB-C / Thunderbolt 3 with Power Delivery - 24 pin USB-C ¦ 1 x audio - mini-phone 3.5 mm ¦ 1 x microphone - mini-phone 3.5 mm |
Miscellaneous | |
Input Device: | SD card reader |
Cables Included: | 1 x Thunderbolt 3 / USB-C cable - external |
Features: | 85W power delivery, Preboot Execution Environment (PXE) support, wake on LAN, dual display support, 5K Ultra HD |
Compliant Standards: | FCC |
TAA Compliant: | Yes |
Power | |
Power Device: | Power adapter |
System Requirements | |
OS Required: | Windows 8 / 8.1 / 10 / 11, Apple macOS 10.12 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0 |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Compatibility Information | |
Designed For: | P/N: ARMBARDUO, ARMBARDUOV, ARMDUAL, ARMDUAL30, ARMDUALV, ARMSLIMDUO |
This compact Thunderbolt 3 dock is built for productivity, transforming your Thunderbolt 3 laptop into a dual-4K workstation with up to 40Gbps of throughput. The high- performance dock features a PCIe M.2 SSD slot for enhanced data storage, three USB ports, an SD card reader, a Gigabit Ethernet port, a downstream Thunderbolt 3 port for daisy-chaining, plus 85W Power Delivery.
Great for Ultra HD tasks, the dual-4K docking station supports 4K resolution on two monitors: 1x DisplayPort + 1x Thunderbolt 3 USB-C display (4096 x 2160p @60Hz); USB-C to DP cable or USB-C video adapter may be required; 1x 5K monitor at 60H.
Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.

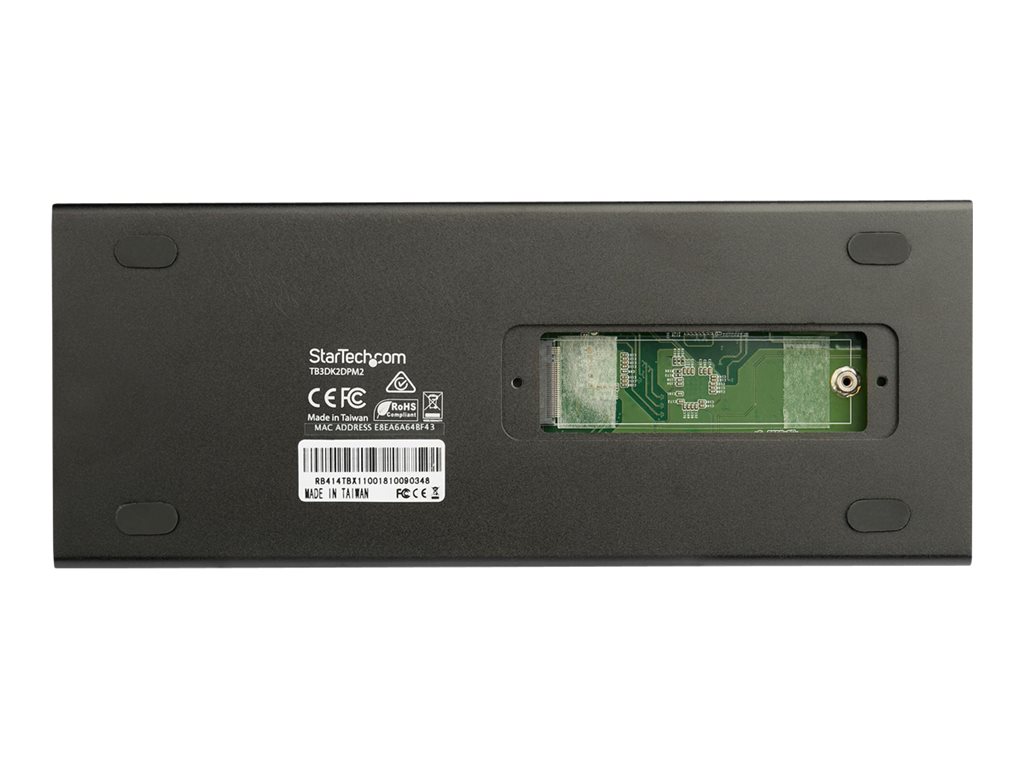

The Thunderbolt 3 dock's built-in PCIe M.2 SSD enclosure supports transfer speeds up to 1500MB/s with the addition of a PCIe M.2 SSD for ultra-fast data access, enhanced storage, and application buffering and caching.
Transfer photos or videos from your SD cards to your Thunderbolt 3 laptop. The dock's SD slot supports SD 4.0 and UHS-II with transfer speeds up to 270MB/s.
Connect peripherals with three USB ports - one USB-C port (10G) with up to 3A charging and two USB-A ports (5G) with Fast-Charge and Sync.
The GbE port (with PXE Boot and WoL support) provides reliable wired network access.
Using a single cable, the Thunderbolt 3 dock provides up to 85W of Power Delivery charging.
Great for Ultra HD tasks, the dual-4K docking station supports 4K resolution on two monitors: 1x DisplayPort + 1x Thunderbolt 3 USB-C display (4096 x 2160p @60Hz); USB-C to DP cable or USB-C video adapter may be required; 1x 5K monitor at 60H.
Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.
The Thunderbolt 3 dock's built-in PCIe M.2 SSD enclosure supports transfer speeds up to 1500MB/s with the addition of a PCIe M.2 SSD for ultra-fast data access, enhanced storage, and application buffering and caching.
Transfer photos or videos from your SD cards to your Thunderbolt 3 laptop. The dock's SD slot supports SD 4.0 and UHS-II with transfer speeds up to 270MB/s.
Connect peripherals with three USB ports - one USB-C port (10G) with up to 3A charging and two USB-A ports (5G) with Fast-Charge and Sync.
The GbE port (with PXE Boot and WoL support) provides reliable wired network access.
Using a single cable, the Thunderbolt 3 dock provides up to 85W of Power Delivery charging.
