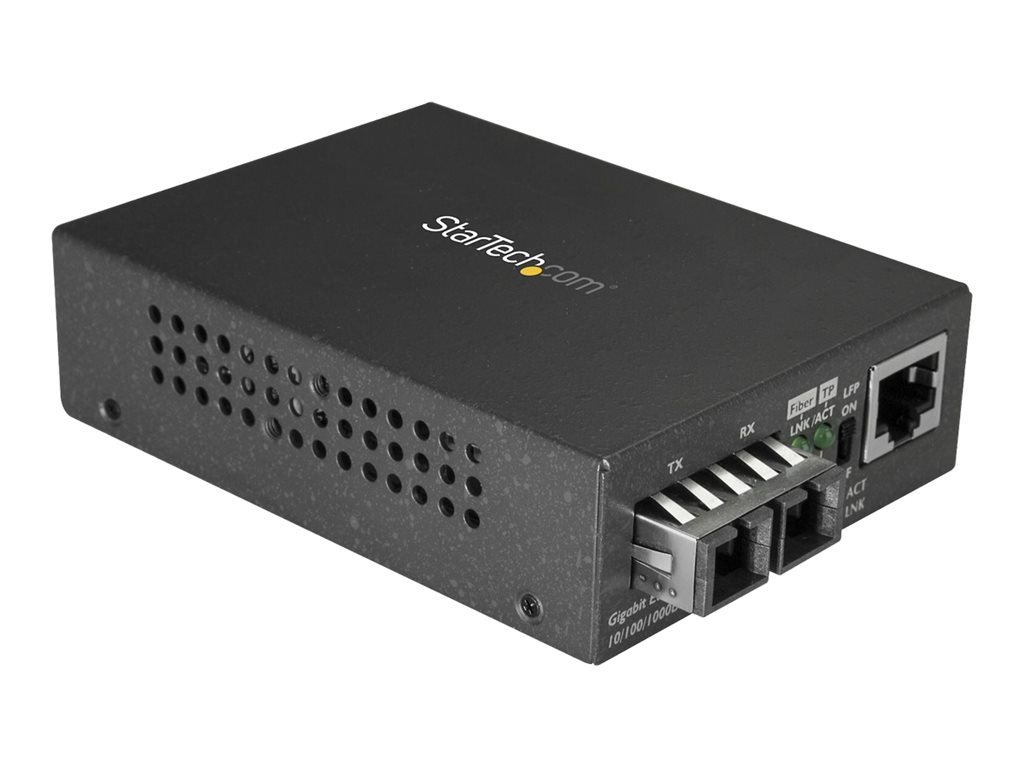

StarTech.com Singlemode (SM) SC Fiber Media Converter for 10/100/1000 Network, 10km, Gigabit Ethernet, 1310nm, w/ Auto Negotiation, Gigabit Ethernet to Single Mode (SMF) SC Fiber Converter - Ethernet Over Fiber (MCMGBSCSM10) - fibre media converter - 10Mb
SKU MCMGBSCSM10
Product Description: | StarTech.com Singlemode (SM) SC Fiber Media Converter for 10/100/1000 Network, 10km, Gigabit Ethernet, 1310nm, w/ Auto Negotiation, Gigabit Ethernet to Single Mode (SMF) SC Fiber Converter - Ethernet Over Fiber (MCMGBSCSM10) - fibre media converter - 10Mb LAN, 100Mb LAN, 1GbE |
Device Type: | Fibre media converter - RJ-45 / SC single-mode |
Form Factor: | External |
Cabling Type: | 1000Base-LX, 100Base-TX, 1000Base-T |
Data Transfer Rate: | 1 Gbps |
Optical Wave Length: | 1310 nm |
Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE |
- Specifications
- Description
General | |
Device Type: | Fibre media converter |
Form Factor: | External |
Networking | |
Connectivity Technology: | Wired |
Cabling Type: | 1000Base-LX, 100Base-TX, 1000Base-T |
Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE |
Data Transfer Rate: | 1 Gbps |
Optical Wave Length: | 1310 nm |
Max Transfer Distance: | 10 km |
Status Indicators: | Port duplex mode, power, link/activity |
Features: | Auto-uplink (auto MDI/MDI-X), full duplex mode, surge protection, 9 KB Jumbo Frame |
Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x |
Expansion / Connectivity | |
Interfaces: | 1 x Ethernet 100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-LX - SC single-mode female x 2 |
Miscellaneous | |
MTBF: | 50,000 hours |
Compliant Standards: | cUL, FCC, RoHS, WEEE |
Power | |
Power Device: | External power adapter |
Voltage Required: | AC 100 - 240 V |
Power Consumption Operational: | 5 Watt |
Dimensions & Weight | |
Width: | 7 cm |
Depth: | 9.7 cm |
Height: | 2.6 cm |
Weight: | 200 g |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 2 years |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 50 °C |
Humidity Range Operating: | 5 - 90% |
Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber. This fiber media converter converts and extends a Gigabit Ethernet fiber (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.
The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
- Extend your GbE network cost effectively
- Reliable and scalable network connectivity
