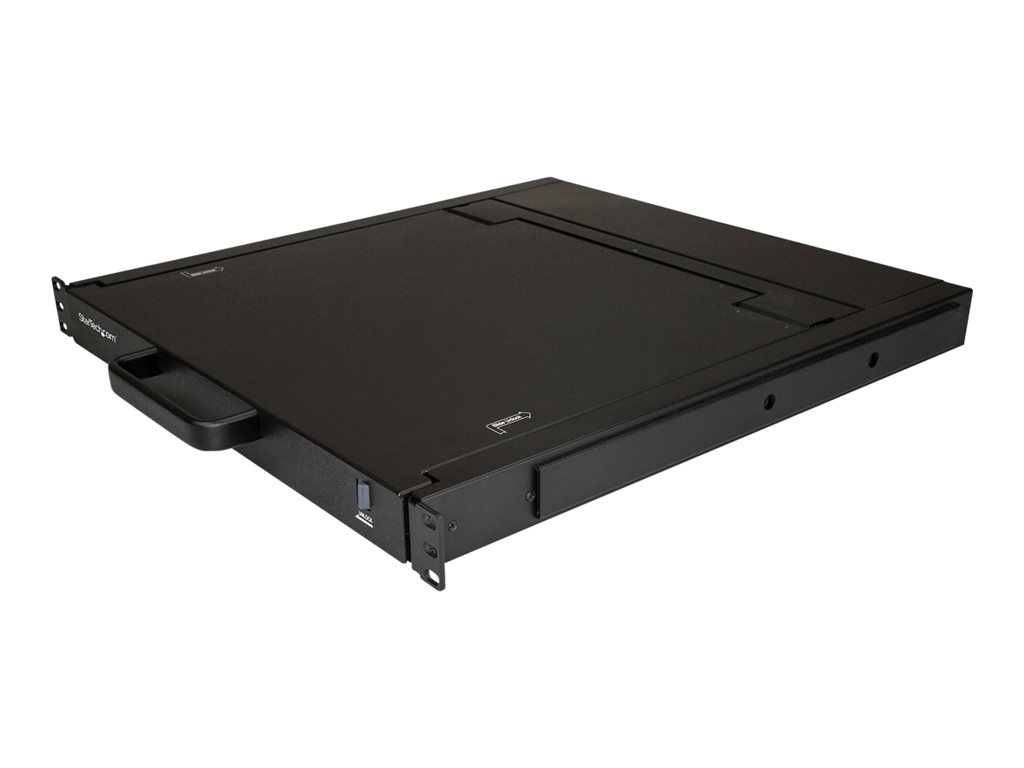

StarTech.com Rackmount KVM Console, Single Port VGA KVM with 17" LCD Monitor for Server Rack, Fully Featured Universal 1U LCD KVM Drawer with Cables & Hardware, USB Support, 50,000 MTBF - LCD KVM Concole Drawer (RKCONS1701) - KVM console - 17"
SKU RKCONS1701
Product Description: | StarTech.com Rackmount KVM Console, Single Port VGA KVM with 17" LCD Monitor for Server Rack, Fully Featured Universal 1U LCD KVM Drawer with Cables & Hardware, USB Support, 50,000 MTBF - LCD KVM Concole Drawer (RKCONS1701) - KVM console - 17" |
Device Type: | KVM console - 17" |
KVM Switch: | USB - 1 ports |
Features: | Keyboard, touchpad |
Aspect Ratio: | 5:4 |
Native Resolution: | 1280 x 1024 at 60 Hz |
Pixel Pitch: | 0.264 mm |
- Specifications
- Description
General | |
Display Type: | KVM console / TFT active matrix |
Diagonal Size: | 17" |
Aspect Ratio: | 5:4 |
Native Resolution: | 1280 x 1024 at 60 Hz |
Pixel Pitch: | 0.264 mm |
Brightness: | 250 cd/m² |
Contrast Ratio: | 1000:1 |
Colour Support: | 16.7 million colours |
Horizontal Viewing Angle: | 170 |
Vertical Viewing Angle: | 160 |
Colour: | Black |
Dimensions (WxDxH): | 44.8 cm x 47.1 cm x 4.25 cm |
Height (Rack Units): | 1U |
Weight: | 11.7 kg |
Input | |
Type: | Keyboard, touchpad |
KVM | |
Type: | KVM switch - 1 ports |
Keyboard / Mouse Interface: | USB |
Max Resolution: | 1280 x 1024 @ 60 Hz |
Connectivity | |
Interfaces: | VGA |
Miscellaneous | |
Included Accessories: | 8 x M5 cage nuts, 8 x M5 screws, 2 x mounting rails |
Cables Included: | 1 x keyboard / mouse / video cable - 1.83 m |
Rack Mounting Kit: | Included |
MTBF: | 50,000 hour(s) |
Localisation: | Australia, Japan, New Zealand, United Kingdom, Europe, North Asia |
Power | |
Input Voltage: | AC 120/230 V |
Power Consumption (Typical): | 13 Watt |
Dimensions & Weight (Shipping) | |
Shipping Weight: | 17.1 kg |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 2 years |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 10 - 80% (non-condensing) |
Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This single-port KVM console includes everything you need to set up right out of the box: 1 VGA KVM Cable; Mounting Rails; M5 Cage Nuts and Screws.
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space.
The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This single-port KVM console includes everything you need to set up right out of the box: 1 VGA KVM Cable; Mounting Rails; M5 Cage Nuts and Screws.
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space.
- 17-inch TFT active matrix display with 1280 x 1024 resolution for clear visuals
- Supports 16.7 million colors, ensuring vibrant image quality
- 50,000 hours MTBF for long-term reliability
- Includes cables & hardware for easy setup
- USB support for keyboard and mouse connectivity
